Dinspace

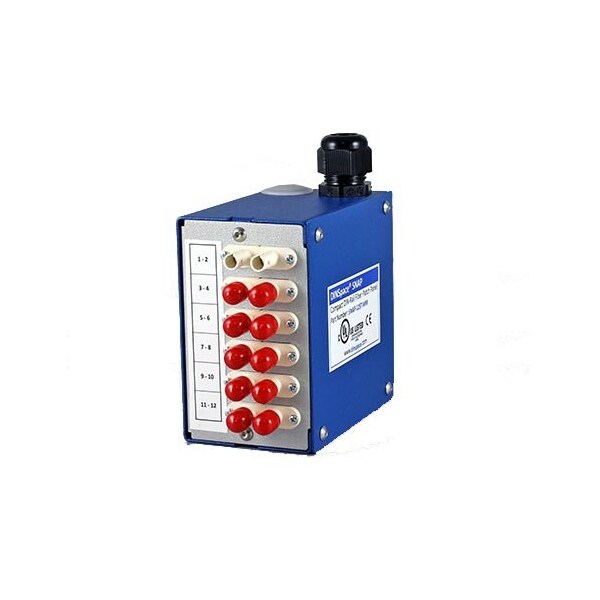

Snap Patch Panel W/6 Mm St/St

product price: $299.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Standards UL Listed 1863 (Communications-Circuit Accessories), CE
  • Mounting Options Rear DIN-Rail, Side DIN-Rail or surface mount
  • Insertion Loss ≤.3dB (Multimode), ≤.2dB (Singlemode)
  • Cable Glands Plastic with max. cable diameter of 12mm (14mm max. also available)
  • Relative humidity (non-condensing) 10% to 95%
See all product information

Product Information

Dimensions

Dimensions with adapters installed (H x D x W) 6.25" x 5.125" x 2.75"

Details

Standards UL Listed 1863 (Communications-Circuit Accessories), CE
Mounting Options Rear DIN-Rail, Side DIN-Rail or surface mount
Insertion Loss ≤.3dB (Multimode), ≤.2dB (Singlemode)
Cable Glands Plastic with max. cable diameter of 12mm (14mm max. also available)
Relative humidity (non-condensing) 10% to 95%
Operating Temperature -40 to +75 deg. C
Plug/Unplug Durability 1000 times
Patch panel body and faceplate 18 gauge powder-coat painted steel
Storage/transport temperature -40 to +80 deg. C
Protection class IP20
Fiber optic adapters UL 90 V-0 Thermoplastic

Restrictions
