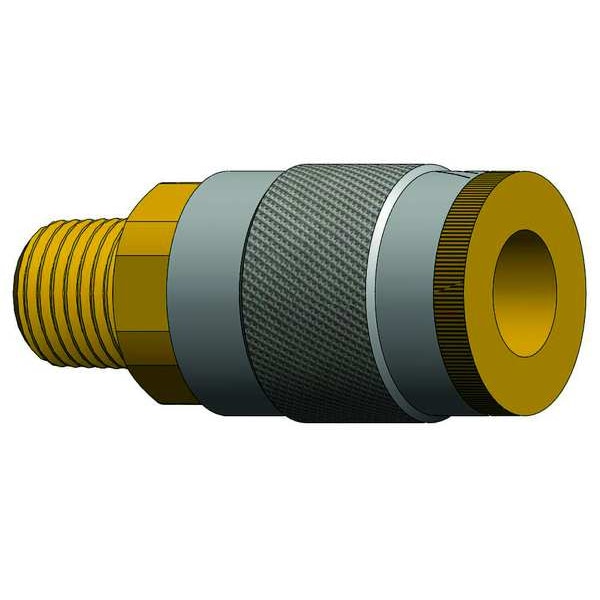

Male to Automotive Coupler, (M)NPT, 1/4
Mfr # 2JM2-B
Zoro # G2482076
Key Features
Specifications
Details
- MFR #
- 2JM2-B
- Zoro #
- G2482076
- UPC #
- -
- Country of Origin
- United States
- Item
- Quick Connect Air Coupling
- Interchange Type
- Tru-Flate-Automotive
- Material
- Brass
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 736.23 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Yellow
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- On End of Hose or Pipe
- For Hose I.D.
- 1/4 in
- Barbed
- No
- Valve Type
- Tubular
- Max. Working Pressure @ 70 F
- 300 psi
- For Use With
- Automotive Style
- Connection Thread Type
- NPT
Description
The DIXON - 2JM2-B is designed for tool-free hose and pipe coupling and uncoupling (socket coupling; sleeve locking mechanism). It includes a tubular valve for flow control during coupling and uncoupling. Made of brass with a zinc-plated finish, this fitting provides sealed, leak-resistant connections suitable for pneumatic and fluid transfer applications when used with fittings/hoses rated for the specified pressures, temperatures, and fluids. It is compatible with automotive-style hoses and follows the Tru-Flate-Automotive interchange standard. The coupling is rated for a maximum working pressure of 300 psi and flow rate up to 736.23 liters per minute (when used under the specified pressure conditions).
Key Features:
- Coupling component type: Socket
- Connection type: NPT thread with 1/4"-18 size
- Hose fitting gender: Female, with hose fitting size 1/4 in
- Body and coupling size: 1/4 in
- is for hoses with a 1/4 in inner diameter
- Incorporates nitrile seal material
- Color: Yellow
- Maximum outside diameter: 7/8 in
- Overall length: 2.06 in
- rated operating temperature range of -40°F to 250°F
