Dranetz Power Qlty Anlz Kit, 300A, HDPQ Visa HDPQ-P-VAMFLEX3PKG - main

Power Qlty Anlz Kit, 300A, HDPQ Visa

  • Mfr # HDPQ-P-VAMFLEX3PKG

  • Zoro # G8579453

product price:  $7,679.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
512 sec/cycle
Phase
4

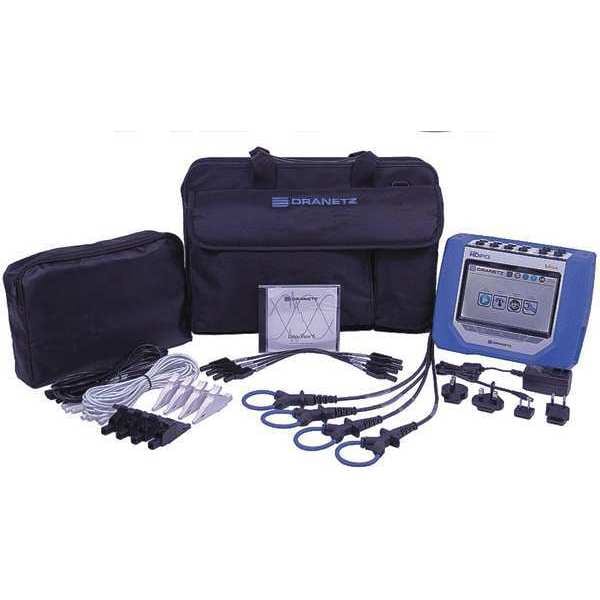

Includes
(4) DRANFLEXDRANFLEX300MHB6, AC Power Supply, Dran-View Pro, Dranetz HDPQ Visa, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
3 to 300 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HDPQ-P-VAMFLEX3PKG
Zoro #
G8579453
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Power Quality Analyzer Kit
Sampling Rate
512 sec/cycle
Phase
4
Includes
(4) DRANFLEXDRANFLEX300MHB6, AC Power Supply, Dran-View Pro, Dranetz HDPQ Visa, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
3 to 300 A
Display
Color LCD Touch Screen
Min. Transient Duration
32 mS
Harmonic Capture Range
63rd
Current Accuracy
+/-0.1%
Crest Factor
I=3, V=2
Max. DC Voltage
1,000V
Voltage Channels
4
Storage
4 GB
Display Resolution
800 x 480
Calibration Certificate
NIST
Max. VA
100 TVA
Voltage Accuracy
+/-0.1%
Calibration Frequency
45 to 65 Hz
Current Channels
4
Data Logging
Yes
Peak Capture
Yes
Max. AC Amps
300 A
Power Factor
0 to 1
Max. AC Voltage
1,000
AC Response
TRMS
Safety Rating
CAT III 1000V, CAT IV 600V
Communication Protocol
Ethernet, Optional Bluetooth, USB, VNC Remote Control
IP Rating
IP65
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Data Output Type
Ethernet, Bluetooth, USB
Maximum AC Current Measured
300 A
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Calibration Certificate Included
NIST Not Traceable
Power Source
AC Adapter, Battery
Testing Functions
Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage

Description

Power Quality Analyzer Kit, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate NIST, Current Channels 4, Includes (4) DRANFLEXDRANFLEX300MHB6, AC Power Supply, Dran-View Pro, Dranetz HDPQ Visa, Soft Carry Case, Voltage Cable Set, Maximum AC Current Measured 300 A, Maximum DC Current Measured Not Applicable, Peak Capture Yes, Power Factor 0 to 1, Testing Functions Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
