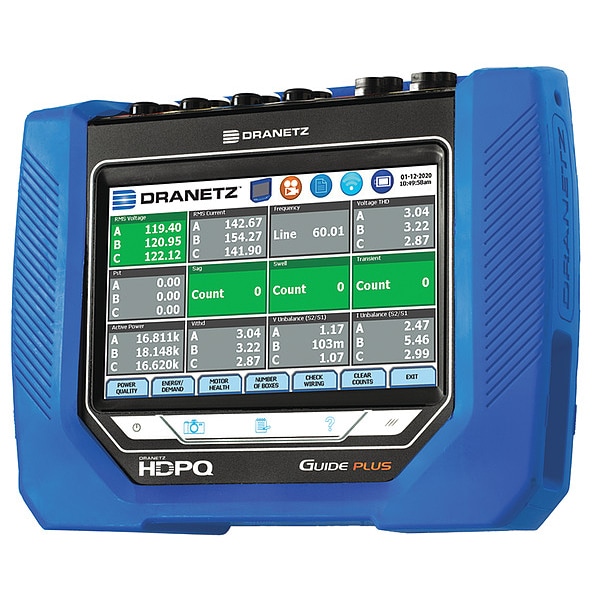

Dranetz Power Qlty Anlz Kit, 6000A, HDPQ Guide HDPQ-P-GAFLEX6KPKG - main

Power Qlty Anlz Kit, 6000A, HDPQ Guide

  • Mfr # HDPQ-P-GAFLEX6KPKG

  • Zoro # G8579426

product price:  $10,989.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
512 sec/cycle
Phase
4
Includes
(1) DRANFLEX6000XLB24 FLEX CT, (1) DRANFLEX6003XLB24 3 Phase FLEX CT, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
6 to 6,000 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HDPQ-P-GAFLEX6KPKG
Zoro #
G8579426
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Power Quality Analyzer Kit
Sampling Rate
512 sec/cycle
Phase
4
Includes
(1) DRANFLEX6000XLB24 FLEX CT, (1) DRANFLEX6003XLB24 3 Phase FLEX CT, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
6 to 6,000 A
Display
Color LCD Touch Screen
Voltage Accuracy
+/-0.1%
Safety Rating
CAT III 1000V, CAT IV 600V
Max. DC Voltage
1,000V
Max. AC Amps
6,000 A
Current Accuracy
+/-0.1%
Data Logging
Yes
Calibration Certificate
NIST
Min. Transient Duration
32 mS
Crest Factor
I=3, V=2
Display Resolution
800 x 480
Peak Capture
Yes
Harmonic Capture Range
63rd
Max. AC Voltage
1,000
Voltage Channels
4
Power Factor
0 to 1
Max. VA
100 TVA
Current Channels
4
Calibration Frequency
45 to 65 Hz
AC Response
TRMS
Storage
4 GB
Communication Protocol
Ethernet, Optional Bluetooth via USB Adapter, USB, VNC Remote Control, Wi-Fi
IP Rating
IP65
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
32 Degrees F
Data Output Type
Ethernet, Bluetooth, USB, Wi-Fi
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Power Source
AC Adapter, Battery
Maximum AC Current Measured
6,000 A
Testing Functions
Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
Calibration Certificate Included
NIST Not Traceable

Description

Power Quality Analyzer Kit, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate NIST, Current Channels 4, Includes (1) DRANFLEX6000XLB24 FLEX CT, (1) DRANFLEX6003XLB24 3 Phase FLEX CT, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set, Maximum AC Current Measured 6,000 A, Maximum DC Current Measured Not Applicable, Peak Capture Yes, Power Factor 0 to 1
