This item is Discontinued.

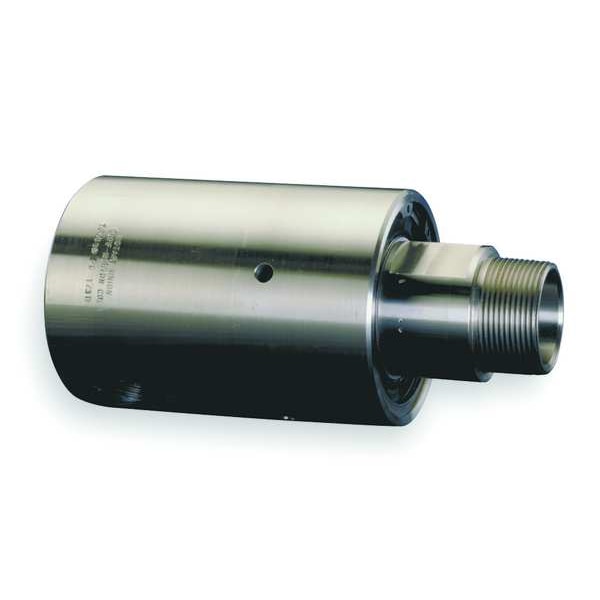

Duff-Norton Rotary Union, 1 In NPT, Stainless Steel 750114C

Rotary Union, 1 In NPT, Stainless Steel (Discontinued)

  • Mfr # 750114C
  • Zoro # G0628503
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
750114C
Zoro #
G0628503
UPC #
-
Country of Origin
United States

Dimensions

Size
1 in
Body Dia.
3.125 in
Pipe Size (Fittings)
1"
Pipe Size - Pipe Fitting
1"
Rotating Shaft Thread Size
1"
Body Diameter
3.13 in
Pipe Size
1 in

Details

Item
Rotary Union
Rotation
Right Hand
Flow
Single or Dual
Max. Speed
1000 rpm (NPT), 3600 rpm (MT)
Connection
NPT
Standards
ISO
Max. Pressure
100 PSI For Hot Oil, 120 PSI For Steam, 300 PSI For Air, 750 PSI For Water
Max. Temp.
300 Deg F For Water, 350 Deg F For Steam, 395 Deg F For Hot Oil
Type
5000 Series
Material of Construction
Stainless steel
Pipe Fitting Material
Stainless Steel
Seal Material
Ceramic Coated Steel
For Fluid Type
Air, Hot Oil, Steam, Water
Operating Pressure for Fluid Types
100 psi (Hot Oil), 120 psi (Steam), 300 psi (Air), 750 psi (Water)
Fitting Material
Stainless Steel
Rotating Shaft Thread
1"
Resistance Properties
Corrosion Resistant, Wear Resistant
Maximum Temperature for Fluid Types
300 Degrees F (Water), 350 Degrees F (Steam), 395 Degrees F (Hot Oil)
Maximum Operating Temperature
300 Degrees F
Maximum Speed
1,000 RPM
Rotation Speed
Fast (1000 rpm and up)
Flow Direction
Single-Flow
Fitting Body Material
300 Stainless Steel
Fitting Material Grade
300
Thread Rotation
Right Hand
Bearing Type
Two Precision Bearings

Description

Rotary Union, Fitting Material Stainless Steel, Fitting Material Grade 300, Flow Direction Single-Flow, Maximum Operating Temperature 300 Degrees F, Maximum Speed 1,000 RPM, Pipe Size 1 in, Rotating Shaft Thread Size 1 In., Seal Material Ceramic Coated Steel
