This item is Discontinued.

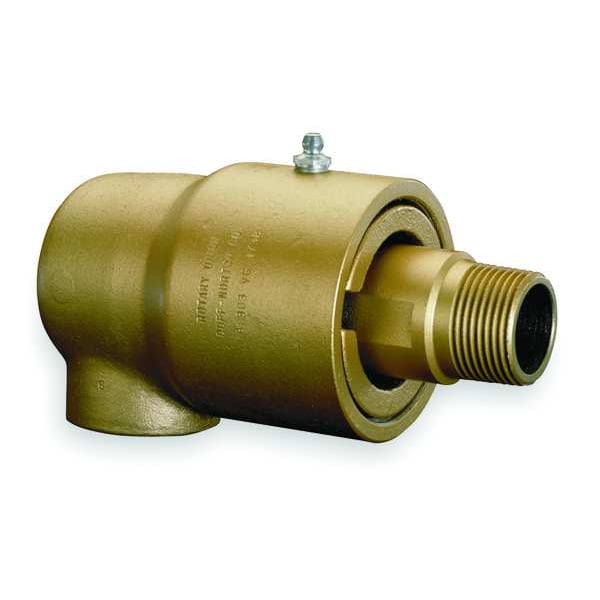

Duff-Norton Rotary Union, 1/2 In NPT, Carbon Steel 730398C

Rotary Union, 1/2 In NPT, Carbon Steel (Discontinued)

  • Mfr # 730398C
  • Zoro # G1317644
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
730398C
Zoro #
G1317644
UPC #
-
Country of Origin
United States

Dimensions

Size
1/2 in
Body Dia.
2.375 in
Pipe Size (Fittings)
1/2"
Pipe Size - Pipe Fitting
1/2"
Pipe Size
1/2 in
Body Diameter
2.38 in
Rotating Shaft Thread Size
1/2"

Details

Item
Rotary Union
Rotation
Right Hand
Flow
Dual
Max. Speed
700 RPM
Max. Temp.
375 Degrees F For Water, Steam, And Hot Oil
Max. Pressure
100 PSI For Hot Oil, 150 PSI For Steam, 250 PSI For Water
Material of Construction
Carbon Steel
Standards
ISO
Type
9000 Series
Connection
NPT
Pipe Fitting Material
Carbon Steel
Temperature Range
375 Degrees F
Maximum Speed
700 RPM
Maximum Temperature for Fluid Types
378 Degrees F (Steam), 600 Degrees F (Hot Oil)
Flow Direction
Dual-Flow
Thread Rotation
Right Hand
For Fluid Type
Hot Oil, Steam, Water
Rotating Shaft Thread
1/2"
Rotation Speed
Medium (201-999 rpm)
Fitting Material
Cast Iron
Bearing Type
Dual Bearings
Operating Pressure for Fluid Types
100 psi (Hot Oil), 175 psi (Steam), 250 psi (Water)
Maximum Operating Temperature
375 Degrees F
Fitting Body Material
Cast Iron

Description

Rotary Union, Fitting Material Cast Iron, Flow Direction Dual-Flow, Maximum Operating Temperature 375 Degrees F, Maximum Speed 700 RPM, Pipe Size 1/2 in, Rotating Shaft Thread Size 1/2 In.

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
