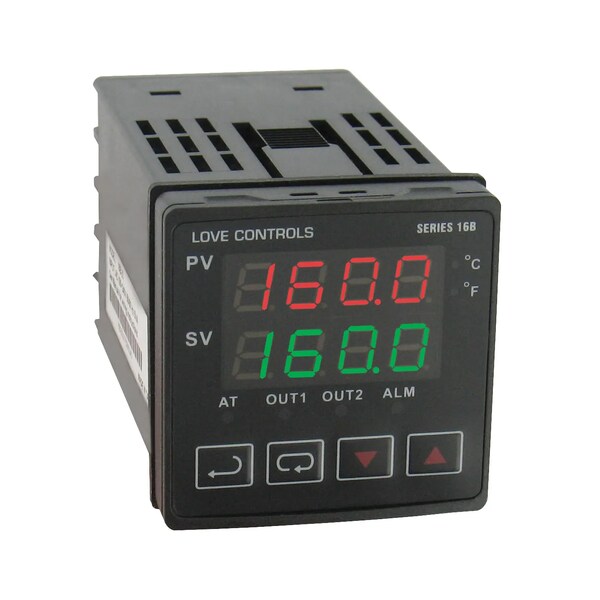

1/16 DIN temperature/process controller, linear voltage output 1 and relay output 2, low voltage

  • Mfr # 16B-63-LV

  • Zoro # G107149012

product price:  $206.99
/ea
Free Shipping & Returns

Key Features

Features
Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions
Display
Two 4-digit, 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Accuracy
±0.25% span, ±1 least significant digit.
Power Consumption
5 VA max.
Memory Backup
Nonvolatile memory.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16B-63-LV
Zoro #
G107149012
UPC #
-
Country of Origin
Taiwan, Province of China

Details

Features
Universal input accepts process transmitters, RTD's or thermocouple signals; On/off, PID, or manual output control; RS-485 standard on all models; Stage control program for up to 64 ramp/soak actions
Display
Two 4-digit, 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Accuracy
±0.25% span, ±1 least significant digit.
Power Consumption
5 VA max.
Memory Backup
Nonvolatile memory.
Operating Temperature
32 to 122°F (0 to 50°C).
Control Output Ratings
Relay: SPST, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Inputs
Thermocouple, RTD, DC voltages or DC current.
Front Panel Rating
IP56.
Communication
RS-485 Modbus® A-5-11/RTU communication protocol.
Agency Approvals
CE, cUL, UL.

Description

1/16 DIN temperature/process controller, linear voltage output 1 and relay output 2, low voltage
