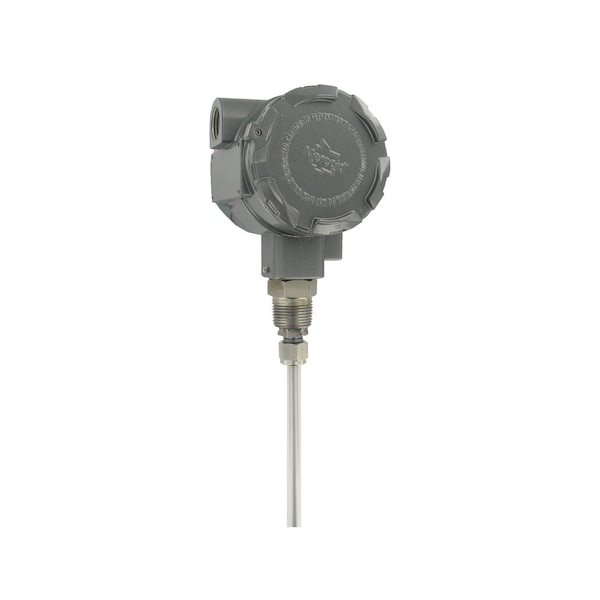

Capacitive level transmitter, weatherproof, rod probe type, 3/4" male NPT, 96" insertion length.
Mfr # CRF2-WR01T-096
Zoro # G107144444
product price:Â
$
1,288.99
/ea
Free Shipping & Returns
Key Features
Voltage
12 to 35V DC
Max. Pressure
100 psi
Amps
4 to 20 mA
Accuracy
± 0.025 %
Mounting
Vertical
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CRF2-WR01T-096
- Zoro #
- G107144444
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Probe Length
- 96 in
- Process Connection Size
- 3/4 in
Details
- Voltage
- 12 to 35V DC
- Max. Pressure
- 100 psi
- Amps
- 4 to 20 mA
- Accuracy
- ± 0.025 %
- Mounting
- Vertical
- Electrical Connections
- 1/2 in NPT female Conduit with Screw Terminal block
- Repeatability
- ±0.25 pF/ ±0.1% of span
- Operating Temp. Range
- -40°F to 185°F
- Wetted Materials
- 316 Stainless Steel, FEP, PVC
- Response Time
- 0.5 s
- Process Connection Type
- NPT Male
- Supply Power Type
- DC
- Probe Type
- Rod
- Min. Process Temp.
- -40°F
- Enclosure Rating
- IP66, NEMA Type 4X
- Protection
- Spark/Static Protection
- Media Compatibility
- Acid Solutions, Alcohol, Bases, Cement Powder, Conductive Liquids, Coolants, Corrosive Liquids, Dry Bulk Solids, Dry Powder, Flour, Grain, Mud, Oil, Ore Suspensions, Powders, Saltwater, Sand, Slurries, Water-based fluids
- Capacitance
- 0 to 2000 pF
- Number of Wires
- 2
- Output Signal
- Current
- Max. Process Temp.
- 250°F
- Sensitivity
- 0.15 pF
Description
Capacitive level transmitter, weatherproof, rod probe type, 3/4" male NPT, 96" insertion length.
