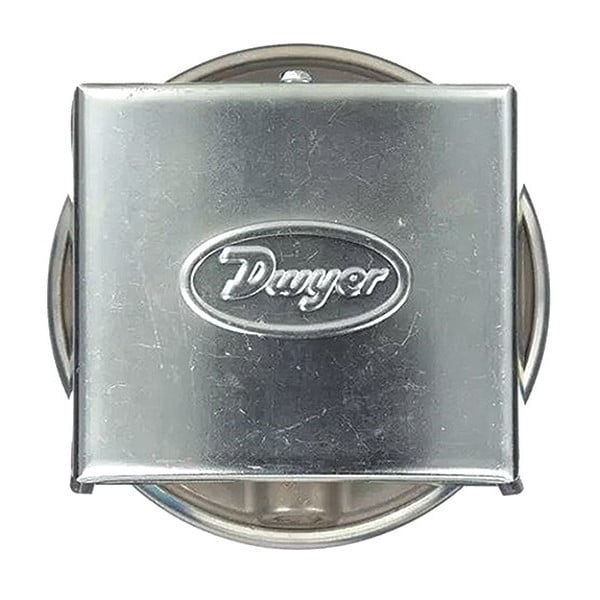

Differential Pressure Switch 15-50 Inch
- Mfr # 1823-5
- Zoro # G1439000
product price:Â
$
137.99
/ea
Free Shipping & Returns
Key Features
Standards
CE, CSA, FM, RoHS, UL Listed
Pressure Type
Differential
Housing Type
Conduit Box
Mounting Hole Center to Center Distance
1 1/8 in
Maximum Differential Pressure Setting
5 in wc
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1823-5
- Zoro #
- G1439000
- UPC #
- -
- Country of Origin
- United States
- Item
- Pressure Switch
- Standards
- CE, CSA, FM, RoHS, UL Listed
- Pressure Type
- Differential
- Housing Type
- Conduit Box
- Mounting Hole Center to Center Distance
- 1 1/8 in
- Maximum Differential Pressure Setting
- 5 in wc
- Sample Line Connector Type
- NPT
- Electrical Rating
- 15 A @ 120 to 480V AC, 60 Hz. Resistive 1/8 HP @ 125V AC, 1/4 HP @ 250V AC, 60 Hz. De-Rate to 10 A
- Minimum Differential Pressure Setting
- 1.5 in wc
- Maximum Operating Temperature
- 180 Degrees F
- Minimum Operating Temperature
- -30 Degrees F
- Input Voltage
- 120 to 480V AC
- Product Type
- Pressure Switch
- Weight
- 1.45 lb
- Pressure Setpoint Type
- Adjustable
- Contact Form
- SPDT
- Number of Switches
- 1
- Electrical Connection Type
- Screw Terminals
- Mounting Orientation
- Vertical
- Maximum Pressure Rating
- 25 psi
- Minimum Pressure Setting
- 1.5 in wc
- Maximum Pressure Setting
- 5 in wc
- Reset Type
- Automatic Reset
Dimensions
- Overall Height
- 4 3/16 in
- Overall Width
- 4 3/8 in
- Overall Depth
- 4 3/8 in
- Sample Line Connection Size
- 1/8 in
- Mounting Hole Diameter
- 1/16 in
Description
Pressure Switch, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 15 A @ 120 to 480V AC, 60 Hz. Resistive 1/8 HP @ 125V AC, 1/4 HP @ 250V AC, 60 Hz. De-Rate to 10 A, Housing Type Conduit Box, Input Voltage 120 to 480V AC, Maximum Differential Pressure Setting 5 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 25 psi, Maximum Pressure Setting 5 in wc, Minimum Differential Pressure Setting 1.5 in wc
