Shop DWYER INSTRUMENTS

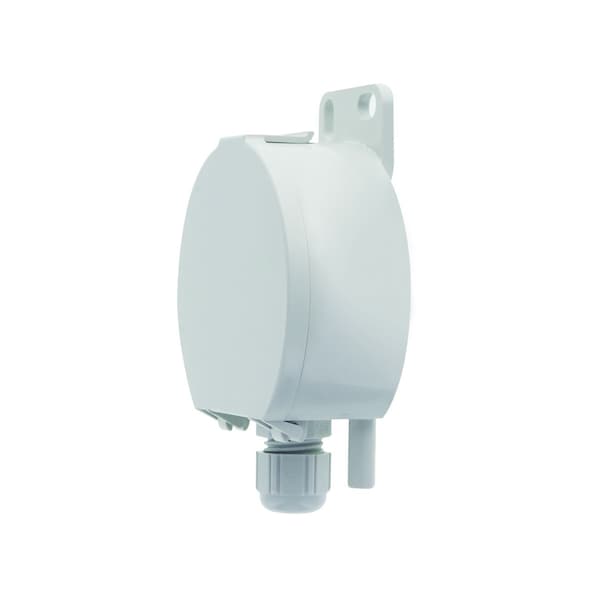

Differential pressure transmitter, 250 Pa, 0-10 V output

  • Mfr # 685-09-V

  • Zoro # G707143700

product price:  $137.99
/ea
Free Shipping & Returns

Key Features

Accuracy
± 0.5 %
Output
Voltage
Power Required
40 mA
Process Connection Type
Stem
Process Connection Size
6 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
685-09-V
Zoro #
G707143700
UPC #
-
Country of Origin
Germany

Dimensions

Process Connection Size
6 mm

Details

Accuracy
± 0.5 %
Output
Voltage
Power Required
40 mA
Process Connection Type
Stem
Application
Clean Rooms, Filter Monitoring, Fluid Measurement and Control
Operating Temp. - Transmitter
-20°C to 70°C
Standards
CE, UKCA
Enclosure Rating
IP54
Electrical Connections - Transmitter
Cable Gland with Screw Terminal block
Loop Resistance
≥ 1 kΩ (≤ 10 mA)
Source Voltage
18 to 30 Vac/Vdc
Mounting
Panel Mount
Pressure Range
0 Pa to 250 Pa
Material of Construction
ABS, Polyamide
Number of Wires
3
Response Time
1 s
Electrical Output
0 to 10 V
Supply Power Type
AC/DC
Long Term Stability
≤ ± 1% RSS/year
Media Compatibility
Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
Sensor Type
Piezoresistive Pressure Sensor
Measurement Pressure Type
Differential
Relative Humidity
0 to 95% RH (non-condensing)

Description

Differential pressure transmitter, 250 Pa, 0-10 V output
