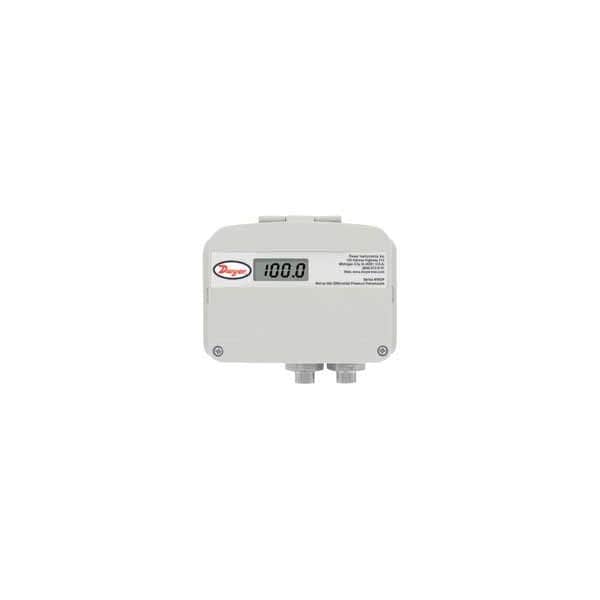

Differential pressure transmitter, selectable 5, 10, 25, 50 psid, 50 psi max. working pressure.
- Mfr # WWDP-1
- Zoro # G707143595
product price:Â
$
1,252.99
/ea
Free Shipping & Returns
Key Features
Accuracy
± 1 %
Power Required
40 mA
Process Connection Type
NPT Female
Process Connection Size
1/8 in
Operating Temp. - Transmitter
-20°C to 85°C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WWDP-1
- Zoro #
- G707143595
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Process Connection Size
- 1/8 in
Details
- Accuracy
- ± 1 %
- Power Required
- 40 mA
- Process Connection Type
- NPT Female
- Operating Temp. - Transmitter
- -20°C to 85°C
- Standards
- CE
- Pressure Range
- 0 psi to 50 psi
- Max. Pressure (PSI)
- 10,000 psi
- Electrical Connections - Transmitter
- 1/2 in NPT female Conduit with Screw Terminal block
- Loop Resistance
- 1000 Ω
- Enclosure Rating
- IP56, NEMA Type 4
- Source Voltage
- 12V DC to 30V DC, 18V AC to 28V AC
- Mounting
- Vertical
- Span Adjustment
- Menu Option
- Media Compatibility
- Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-Corrosive Dry Gases, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids
- Proof Pressure
- Up to 110 psi
- Electrical Output
- 4 to 20 mA, 0 to 5 Vdc, 0 to 1 Vdc
- Compensated Temp. Range
- 0°C to 54°C
- Measurement Pressure Type
- Differential
- Supply Power Type
- AC/DC
- Long Term Stability
- ± 0.5%/year
- Response Time
- 1 to 5 s
Description
Differential pressure transmitter, selectable 5, 10, 25, 50 psid, 50 psi max. working pressure.
