  5. Digital Industrial Pressure Gauge, 0 to 300 psi, 3 in Dial, 1/4 in NPT, Bottom Location

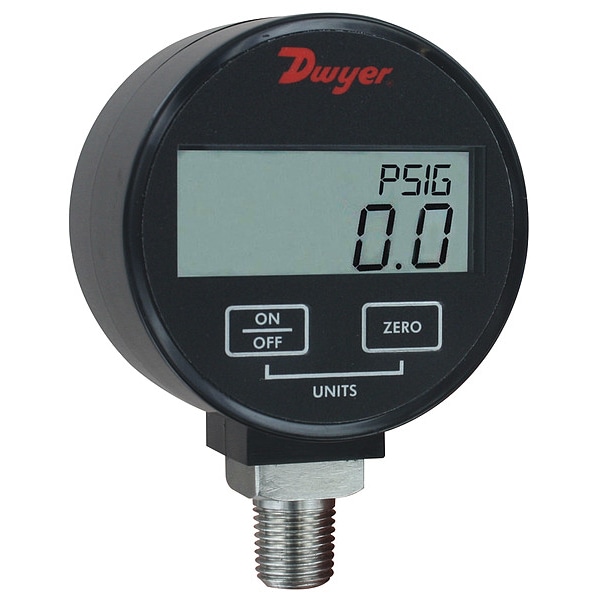

Dwyer Instruments Digital Industrial Pressure Gauge, 0 to 300 psi, 3 in Dial, 1/4 in NPT, Bottom Location DPGW-10 - main

Digital Industrial Pressure Gauge, 0 to 300 psi, 3 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # DPGW-10

  • Zoro # G103481536

product price:  $179.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DPGW-10
Zoro #
G103481536
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 in
Digit Height
0.425 in
Nominal Dial Size
3 in
Connection Size
1/4 in
Case Depth
1.52 in
Manufacturer Warranty Length
1 yr
Case Diameter
2.62 in
Battery Size
9V

Details

Item
Digital Industrial Pressure Gauge
Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
OEM Applications, Process Industries
Gauge Case Material
ABS
Series
DPGW
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Auto-Shutoff
Yes
Resolution
Dependent on Range
Display Units
bar, in Hg, kg/sq cm, kPa, oz/sq in, psi
Socket Material
Stainless Steel
Display Screen Type
LCD
Number of Digits
4
Compatible Process Media
Liquids and Compatible Gases
Includes Mounting Hardware
No
Pressure Gauge Type
Industrial Pressure Gauge
Sensor Material
Silicone
Includes Batteries
Batteries Included
Display
LCD
Memory Storage
No
Process Connection Gender
Male
Includes
Alkaline Batteries
Primary Display Range
0 to 300
Features
Automatic Shutoff, Zero Adjustment
Weatherproof
No
Includes Calibration Certificate
No
Gauge Application
For Liquids & Gases
Process Temperature Range
30 Degrees to 120 Degrees F
Power Source
Battery
Pressure Range Type
Pressure
Adjustable Set Points
No
Number of Display Digits
4
Display Resolution
0.1 psi
Non-Sparking
No
Languages
English
Low Battery Indicator
Yes
Connection Type
MNPT
Temperature Error
0.05% Degrees F
Calibration Certificate
No
Primary Display Units
psi
Display Range
0 to 20.68 bar, 0 to 2068 kpa, 0 to 21.09 kg/cm², 0 to 300 psi, 0 to 4800 oz/in², 0 to 611 in Hg, 0 to 692 ft wc.
Case Color
Black
Standards
CE Certified, RoHS, Russian GOST Certification
Case Shape
Round
Includes Rubber Boot
No
Powered By
9V Battery
Peak Hold
No
Case Material
ABS Thermoplastic
Backlit Screen
No
Automatic Shut-Off Time
20 min
Display Type
LCD
Operating Temperature Range
30 Degrees to 120 Degrees F
Pressure Measurement - Maximum
300 psi
Includes Low Battery Indicator
Low Battery Indicator
Process Media Temperature - Minimum
30 Degrees F
Process Media Temperature - Maximum
120 Degrees F
Pressure Measurement - Minimum
0 psi
Pressure Measuring Units
bar, in Hg, kg/sq cm, kPa, oz/sq in, psi

Description

Digital Industrial Pressure Gauge, Accuracy +/-1.00 Percent, Gauge Case Material ABS, Nominal Dial Size 3 in, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Compatible Process Media Liquids and Compatible Gases, Sensor Material Silicone, Socket Material Stainless Steel, Process Connection Type NPT, Display Units bar, in Hg, kg/sq cm, kPa, oz/sq in, psi, Process Connection Gender Male, Battery Type 9V Battery, Process Connection Location Bottom, Process Connection Size 1/4 in
