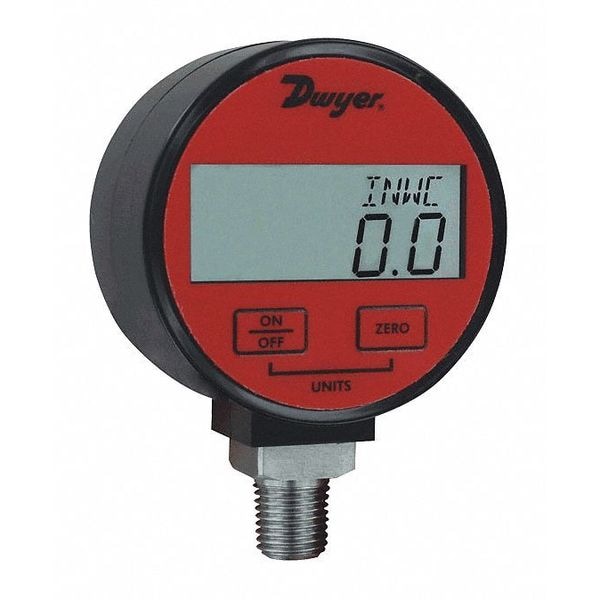

Dwyer Instruments Digital Industrial Pressure Gauge, 2 9/16 in Dial, 1/4 in NPT, Bottom Location, ABS Case Material DPGA-09 - main

Digital Industrial Pressure Gauge, 2 9/16 in Dial, 1/4 in NPT, Bottom Location, ABS Case Material

  • Mfr # DPGA-09

  • Zoro # G1437978

product price:  $162.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 9/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPGA-09
Zoro #
G1437978
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 9/16 in
Digit Height
0.425 in
Nominal Dial Size
2 9/16 in
Case Diameter
2.671 in
Case Depth
1.5 in
Display Screen Width
0.234 in
Display Screen Height
0.425 in
Battery Size
9V

Details

Item
Digital Industrial Pressure Gauge
Accuracy
+/-1.00%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
OEM Applications, Process Industries, Process Start-Up Applications
Gauge Case Material
ABS
Series
DPGA
IP/NEMA Rating
Not Rated
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Digital Pressure and Vacuum Gauge Type
Digital Pressure Gauge
Peak Hold
No
Pressure Range
0 to 200 psi
Number of Display Digits
4
Includes
9 V Alkaline Battery
Socket Material
316L Stainless Steel
Display Units
bar, ft wc, in Hg, kg/sq cm, kPa, oz/sq in, psi
Standards
CE, RoHS, Russian GOST
Low Battery Indicator
Yes
Temperature Error
0.05% Degrees F
Includes Mounting Hardware
No
Compatible Process Media
Air and Compatible Gases
Includes Batteries
Batteries Included
Pressure Range Type
Pressure
Primary Display Units
psi
Auto-Shutoff
Yes
Pressure Gauge Type
Industrial Pressure Gauge
Power Source
Battery
Process Temperature Range
30 Degrees to 120 Degrees F
Display Resolution
0.1 psi
Display Screen Type
LCD
Weatherproof
No
Non-Sparking
No
Display Range
0 to 200 psi
Process Connection Gender
Male
Sensor Material
Silicone
Backlit Screen
No
Languages
English
Primary Display Range
0 to 200
Adjustable Set Points
No
Number of Digits
4
Case Shape
Round
Includes Rubber Boot
Yes
Includes Calibration Certificate
No
Accuracy Grade Gauge Type
Process
Mounting Hardware Included
No
Ambient Operating Temperature Range
30 Degrees to 120 Degrees F
Keypad Material
ABS Plastic
Line Power Voltage
9 V
Automatic Shut-Off Time
20 min
Display Type
LCD
Pressure Measurement - Maximum
200 psi
Pressure Measurement - Minimum
0 psi
Pressure Measuring Units
bar, ft wc, in Hg, kg/sq cm, kPa, oz/sq in, psi
Includes Low Battery Indicator
Low Battery Indicator
Process Media Temperature - Minimum
30 Degrees F
Process Media Temperature - Maximum
120 Degrees F

Description

Digital Industrial Pressure Gauge, Accuracy +/-1.00 Percent, Gauge Case Material ABS, Nominal Dial Size 2 9/16 in, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Compatible Process Media Air and Compatible Gases, Sensor Material Silicone, Socket Material 316L Stainless Steel, Process Connection Type NPT, Display Units bar, ft wc, in Hg, kg/sq cm, kPa, oz/sq in, psi, Process Connection Gender Male, Battery Type 9V Alkaline Battery, Process Connection Location Bottom
