No Product Image Available

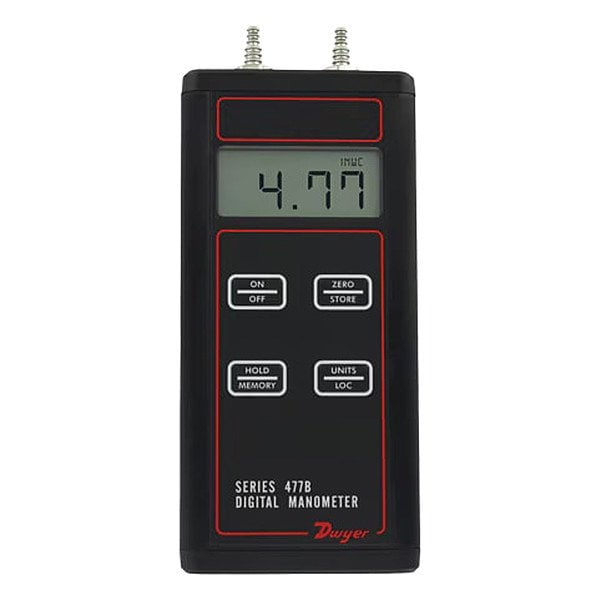

Digital Manometer, LCD, 30 psig, Barb

  • Mfr # 477B-4-NIST

  • Zoro # G116389058

product price:  $823.99
/ea
Free Shipping & Returns

Key Features

Includes NIST-Traceable Calibration Certificate
NIST-Traceable Calibration Certificate Included
Standards
CE
Battery Size
9V
Process Connection Type
Hose Barb
Display Units
bar, ft wc, in Hg, in wc, kPa, mbar, mm Hg, mm wc, Pa, psi
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
477B-4-NIST
Zoro #
G116389058
UPC #
-
Country of Origin
United States

Dimensions

Battery Size
9V
For Tubing Diameter
1/8 in, 3/16 in
Process Connection Size
1/8 in, 3/16 in

Details

Item
Digital Manometer
Includes NIST-Traceable Calibration Certificate
NIST-Traceable Calibration Certificate Included
Standards
CE
Process Connection Type
Hose Barb
Display Units
bar, ft wc, in Hg, in wc, kPa, mbar, mm Hg, mm wc, Pa, psi
Includes Data Hold
Data Hold
Series
477B
Pressure Resolution
0.01 psi
Includes Batteries
Batteries Included
Operating Temperature - Minimum
0 Degrees F
Housing Material
Aluminum
Pressure Measurement - Minimum
0 psi
Pressure Measurement - Maximum
10 psi
Number of Digits
4
Pressure Type Measured
Differential, Gas
Number of Process Connections
2
Operating Temperature - Maximum
140 Degrees F
Operating Pressure - Maximum
30 psig
Digital Display Type
LCD
Includes Alarm
Alarm Included
Accuracy
+/-0.1% Full Scale from 60 to 78 Degrees F (15.6 to 25.6 Degrees C), +/-1% Full Scale from 32 to 60 Degrees F and 78 to 104 Degrees F
Process Connection Material
Stainless Steel

Description

Digital Manometer, Accuracy +/-0.1 Percent Full Scale from 60 to 78 Degrees F (15.6 to 25.6 Degrees C), +/-1 Percent Full Scale from 32 to 60 Degrees F and 78 to 104 Degrees F, Process Connection Size 1/8 in, 3/16 in, Process Connection Type Hose Barb, Series 477B, Data Interface Not Applicable, Display Units bar, ft wc, in Hg, in wc, kPa, mbar, mm Hg, mm wc, Pa, psi, For Tubing Diameter 1/8 in, 3/16 in
