Pic Gauges Industrial Pressure Gauge, 0 to 600 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location PRO-302D-158K-01 - main

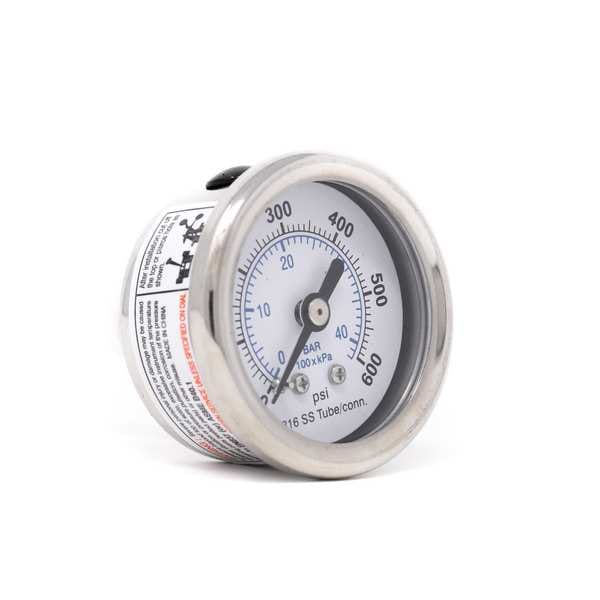

Industrial Pressure Gauge, 0 to 600 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # PRO-302D-158K-01

  • Zoro # G7287045

product price:  $24.15
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-302D-158K-01
Zoro #
G7287045
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
1 1/2 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Plastic
Primary Pressure Range
0 to 600
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Includes
Vent Plug
Gauge Primary Range Smallest Graduation
100
Case Material
Stainless Steel
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
100
Gauge Secondary Range Values
0 to 40
Case Color
Metallic
Gauge Special Options
Field Liquid Fillable
Graduations
100 psi
Socket Material
316 Stainless Steel
Standards
ASME
Connection Type
MNPT
Sensor Material
316 Stainless Steel
Field Fillable
Yes
Dry Dampening Feature
None
Pressure Range Type
Pressure
Non-Sparking
No
Vibration Resistance
Field-Fillable
Secondary Scale Units
bar
Bezel Mounting Type
Crimped
Includes Vent Plug
No
Bezel Material
Stainless Steel
Freeze Resistant Movement
No
Dial Color
White
Primary Scale Numeric Increments
100
Pointer Material
Aluminum
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Includes Mounting Hardware
No
Accuracy Scale
Mid-Scale
Process Connection Gender
Male
Pressure Gauge Type
Industrial Pressure Gauge
Primary Scale Minor Graduations
100
Pointer Color
Black
Cleaned for Oxygen Service
No
Secondary Pressure Range
0 to 41
Removable Bezel
No
Scale Type
Dual
Accuracy Grade
ASME B40.100 Grade A, ASME B40.100 Grade B
Includes Calibration Certificate
No
Gauge Case Liquid
None
Operating Temperature Range
-30 Degrees to 180 Degrees F
Case Liquid
None
Operating Temperature - Minimum
-30 Degrees F
Process Media Temperature - Maximum
180 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
41 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Operating Temperature - Maximum
180 Degrees F
Secondary Scale Vacuum Measurement - Maximum
40 bar
Primary Scale Pressure Measurement - Maximum
600 psi
Primary Scale Vacuum Measurement - Minimum
0 psi
Compatible with Series
300
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
600 psi
NEMA Enclosure Rating
No Enclosure
Secondary Scale Vacuum Measurement - Minimum
0 bar
Process Media Temperature - Minimum
-30 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable Yes, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 600, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
