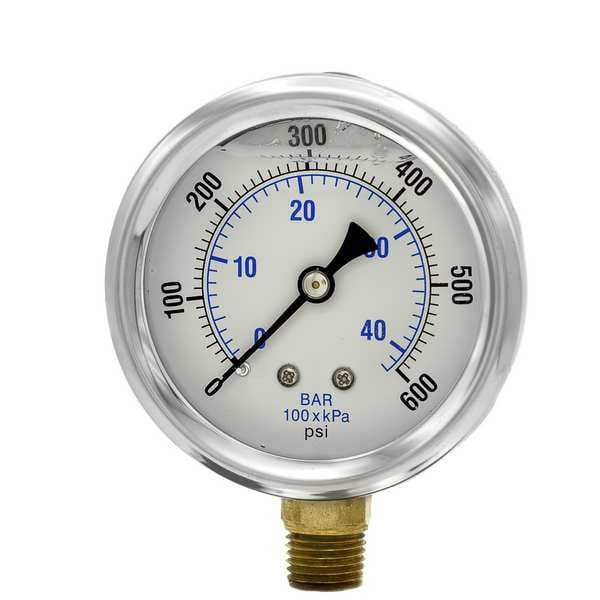

Pic Gauges Industrial Pressure Gauge, 0 to 600 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PRO-201L-254K - main

Industrial Pressure Gauge, 0 to 600 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PRO-201L-254K

  • Zoro # G5119899

product price:  $23.59
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRO-201L-254K
Zoro #
G5119899
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.30"
Manufacturer Warranty Length
1 yr
Case Depth
1.2 in
Nominal Dial Size
2 1/2 in
Case Diameter
2.65 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
201L
Lens Material
Polycarbonate
Primary Pressure Range
0 to 600
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
10
Includes
Vent Plug
Smallest Graduation
10 psi
Calibration Certificate Included
No
Gauge Filled With
Glycerin
Case Color
Metallic
Gauge Application
General Purpose
Case Material
Stainless Steel
Socket Material
Copper Alloy
Standards
ASME
Wetted Materials
Copper
Connection Type
MNPT
Pressure Gauge Type
Industrial Pressure Gauge
Cleaned for Oxygen Service
No
Secondary Pressure Range
0 to 41
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Dial Color
White
Removable Bezel
No
Pointer Material
Aluminum
Bezel Mounting Type
Fixed
Non-Sparking
No
Scale Type
Dual
Dry Dampening Feature
None
Freeze Resistant Movement
No
Gauge Case Liquid
Glycerin
Includes Vent Plug
Yes
Field Fillable
No
Accuracy Grade
ASME B40.100 Grade A
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Accuracy Scale
Mid-Scale
Pointer Color
Black
Primary Scale Minor Graduations
10
Vibration Resistance
Liquid-Filled
Process Connection Gender
Male
Sensor Material
Copper Alloy
Bezel Material
Stainless Steel
Secondary Scale Units
bar
Pressure Range Type
Pressure
Maximum Pressure
600
Operating Temperature Range
30 Degrees to 160 Degrees F
Compatible with Series
201L
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Maximum
600 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Minimum
30 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 bar
Compatible with Brand
Universal
Operating Temperature - Maximum
180 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Secondary Scale Pressure Measurement - Maximum
41 bar
Operating Temperature - Minimum
-30 Degrees F
NEMA Enclosure Rating
No Enclosure
Secondary Scale Vacuum Measurement - Minimum
0 bar

Description

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 600, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
