  9. Digital Process Pressure Gauge, 0 to 1000 psi, 3 in Dial, 1/4 in NPT, Bottom Location

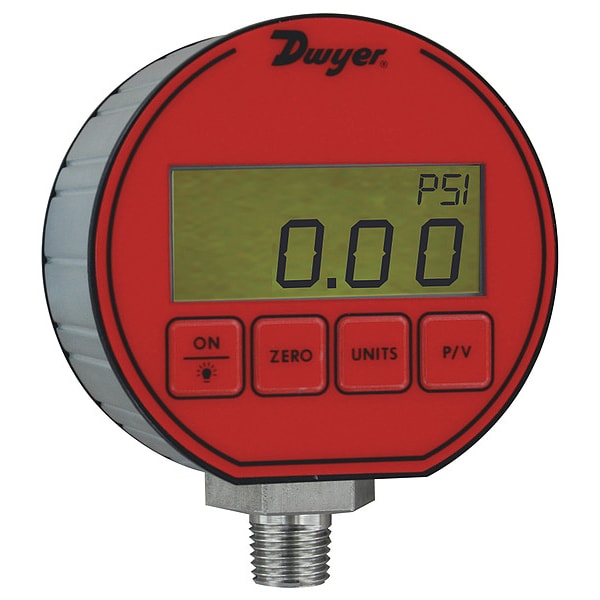

Dwyer Instruments Digital Process Pressure Gauge, 0 to 1000 psi, 3 in Dial, 1/4 in NPT, Bottom Location DPG-009 - main

Digital Process Pressure Gauge, 0 to 1000 psi, 3 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # DPG-009

  • Zoro # G5163944

product price: $369.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPG-009
Zoro #
G5163944
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 in
Connection Size
1/4 in
Digit Height
0.425 in
Manufacturer Warranty Length
1 yr
Nominal Dial Size
3 in
Case Diameter
3 in
Case Depth
1.9 in
Battery Size
AAA

Details

Item
Digital Process Pressure Gauge
Accuracy
+/-0.50%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
OEM Applications, Process Industries, Replacement Gauge
Gauge Case Material
Polycarbonate
Series
DPG
Primary Pressure Range
0 to 1000
Primary Scale Units
psi
IP/NEMA Rating
NEMA 4X
Hazardous Location Rating
Class I, Division 1, Groups A, B, C, D
Panel-Mountable
No
Blowout Safety Back
No
Resolution
Dependent on Range
Agency Compliance
CE
Socket Material
Stainless Steel
Peak Hold
Yes
Memory Storage
No
Calibration Certificate
No
Connection Type
MNPT
Display
Digital
Standards
CE Certified, FM Approved, RoHS
Number of Display Digits
4
Case Material
ABS Polycarbonate
Case Color
Red
Features
Automatic Shutoff, Low Battery Indicator, Zero Adjustment
Powered By
(2) AAA Batteries
Display Units
bar, in Hg, kg/sq cm, kPa, psi
Includes
Alkaline Batteries
Sensor Material
316L Stainless Steel
Ambient Operating Temperature Range
0 Degrees to 130 Degrees F
Primary Display Range
0 to 1,000
Non-Sparking
No
Power Source
Battery
Includes Calibration Certificate
No
Low Battery Indicator
Yes
Display Range
0 to 1,000 psi, 0 to 2,036 in Hg, 0 to 2307 ft wc., 0 to 68.98 bar, 0 to 6,895 kPa, 0 to 70.3 kg/cm²
Case Shape
Round
Process Connection Gender
Male
Display Screen Type
LCD
Keypad Material
Polycarbonate
Number of Digits
4
Includes Mounting Hardware
No
Process Temperature Range
0 Degrees to 130 Degrees F
Pressure Range Type
Pressure
Backlit Screen
Yes
Auto-Shutoff
Yes
Includes Rubber Boot
No
Weatherproof
No
Includes Batteries
Batteries Included
Battery Run Time
2,000 hr
Adjustable Set Points
No
Primary Display Units
psi
Languages
English
Compatible Process Media
Compatible Liquids and Combustible Gases
Pressure Gauge Type
Process Pressure Gauge
Battery Life
2,000 hr
Automatic Shut-Off Time
60 min
Display Type
LCD
Operating Temperature Range
0 Degrees to 130 Degrees F
Includes Low Battery Indicator
Low Battery Indicator
Pressure Measurement - Maximum
1,000 psi
Pressure Measurement - Minimum
0 psi
Number of Batteries Required
2
NEMA Enclosure Rating
4X
Process Media Temperature - Minimum
0 Degrees F
Process Media Temperature - Maximum
130 Degrees F
Pressure Measuring Units
bar, in Hg, kg/sq cm, kPa, psi

Description

Digital Process Pressure Gauge, Accuracy +/-0.50 Percent, Gauge Case Material Polycarbonate, Nominal Dial Size 3 in, IP/NEMA Rating NEMA 4X, Hazardous Location Rating Class I, Division 1, Groups A, B, C, D, Compatible Process Media Compatible Liquids and Combustible Gases, Sensor Material 316L Stainless Steel, Socket Material Stainless Steel, Process Connection Type NPT, Display Units bar, in Hg, kg/sq cm, kPa, psi, Process Connection Gender Male, Battery Type (2) AAA Batteries
