  13. Humidity Switch, LED, 1 hp, 1-3/8" H, 3" W

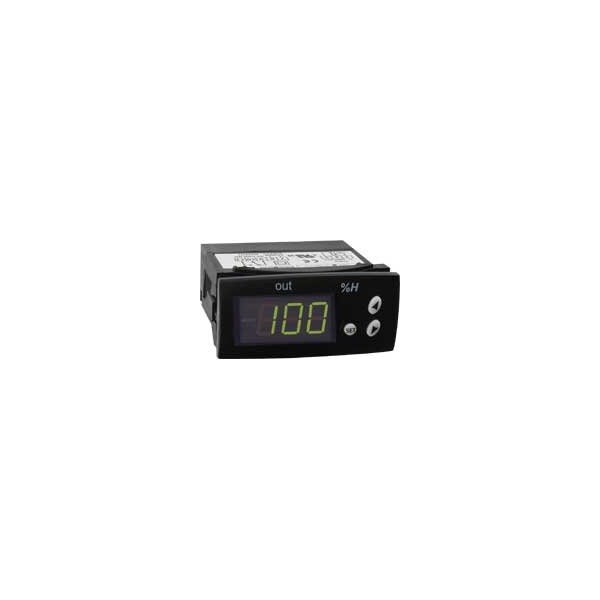

Dwyer Instruments Humidity Switch, LED, 1 hp, 1-3/8" H, 3" W HS-111 - main

Humidity Switch, LED, 1 hp, 1-3/8" H, 3" W

  • Mfr # HS-111

  • Zoro # G910044856

product price: $125.99
/ea
Free Shipping & Returns

Key Features

Standards
CE Compliant, cURus Compliant, RoHS, UL Listed
Accuracy
+/-1% RH
Agency Approvals
CE, cURus.
Output
16 A SPDT Relay @ 250V AC Resistive
Front Panel Rating
IP64.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HS-111
Zoro #
G910044856
UPC #
-
Country of Origin
Spain

Dimensions

Overall Height
1 3/8 in
Overall Width
3 in
Panel Cutout Size
2 51/64 in x 1 9/64 in

Details

Item
Humidity Switch
Standards
CE Compliant, cURus Compliant, RoHS, UL Listed
Accuracy
+/-1% RH
Agency Approvals
CE, cURus.
Output
16 A SPDT Relay @ 250V AC Resistive
Front Panel Rating
IP64.
Memory Backup
Nonvolatile memory.
Power Requirements
115 VAC or 230 VAC (depending on model).
Storage Temperature
-4 to 176°F (-20 to 80°C).
Display
3-digit, green, 1/2" (12.7 mm) digits.
Temperature Limits
32 to 158°F (0 to 70°C).
Display Type
LED
Power Source
Hardwired
Indicator Type
Visual
Relative Humidity - Minimum
10 %
Control Type
On/Off
Relative Humidity - Maximum
100 %
Application
Beer and Wine Chillers, Environmental Chambers, Greenhouses
Monitoring Applications
Humidity
Horsepower Rating
1 hp
Programmable Interface
Programmable
Operating Temperature - Maximum
158 Degrees F
Supply Voltage
110V AC
Number of Measuring Digits
3
Operating Temperature - Minimum
32 Degrees F
Resolution
1 Digit
Input Voltage
0 to 1 V
Memory Backup Type
Nonvolatile Memory
IP Rating
IP64

Description

Humidity Switch, Accuracy +/-1 Percent RH, Application Beer and Wine Chillers, Environmental Chambers, Greenhouses, Control Type On/Off, Display Type LED, Horsepower Rating 1 hp, Indicator Type Visual, Input Voltage 0 to 1 V, IP Rating IP64, Memory Backup Type Nonvolatile Memory, Monitoring Applications Humidity, Mounting Location Panel Mount, Number of Measuring Digits 3, Operating Temperature - Maximum 158 Degrees F, Operating Temperature - Minimum 32 Degrees F
