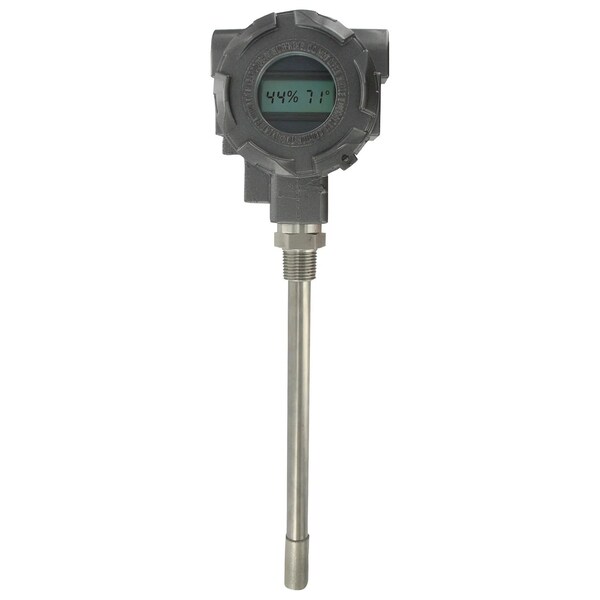

Hum/Temp Xtmr, 4.28", 13.72", 4 to 20 mA
- Mfr # HHT-IT-LCD
- Zoro # G107146585
product price:Â
$
1,616.99
/ea
Free Shipping & Returns
Key Features
Overall Height
4.28 in
Input Voltage
9.5 to 28V DC
Compensated Temperature - Minimum
-40 Degrees F
Overall Width
3.91 in
Process Media Temperature Measurement - Maximum
140 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HHT-IT-LCD
- Zoro #
- G107146585
- UPC #
- -
- Country of Origin
- United States
- Input Voltage
- 9.5 to 28V DC
- Compensated Temperature - Minimum
- -40 Degrees F
- Item
- Temperature/Humidity Transmitter
- Process Media Temperature Measurement - Maximum
- 140 Degrees F
- Temperature Accuracy
- +/-0.9 Degrees F @ 77 Degrees F
- Relative Humidity Sensor
- Capacitive
- Humidity Measurement - Maximum
- 100 %
- Temperature Sensor
- Solid State Band Gap
- Humidity Measurement - Minimum
- 0 %
- Electrical Connection
- Screw Terminals
- Compensated Temperature - Maximum
- 140 Degrees F
- Process Media Temperature Measurement - Minimum
- -40 Degrees F
- Operating Temperature - Maximum
- 140 Degrees F
- Response Time
- 15 sec
- Operating Temperature - Minimum
- -40 Degrees F
- Humidity Accuracy
- +/-2%
- Output Power
- 4 to 20 mA
- Process Connection Type
- NPT
- Series
- HHT
- Standards
- CE, FM, Intrinsically Safe
- Hysteresis
- +/-1%
- Process Connection Gender
- Female
Dimensions
- Overall Height
- 4.28 in
- Overall Width
- 3.91 in
- Process Connection Size
- 1/2 in
- Length
- 13.72 in
- Overall Length
- 13.72 in
Description
Temperature/Humidity Transmitter, Maximum Sensed Temperature 140 Degrees F, Minimum Sensed Temperature -40 Degrees F, Temperature Accuracy +/-0.9 Degrees F @ 77 Degrees F, Power Required 9.5 to 28V DC, Electrical Connections Screw Terminals, Overall Length 13.72 in, Series HHT, Output 4 to 20 mA, Relative Humidity Range 0 to 100 Percent, Humidity Accuracy +/-2 Percent, Sensing Element Type Solid State Band Gap, Compensated Temperature Range -40 Degrees to 140 Degrees F, Display LCD
