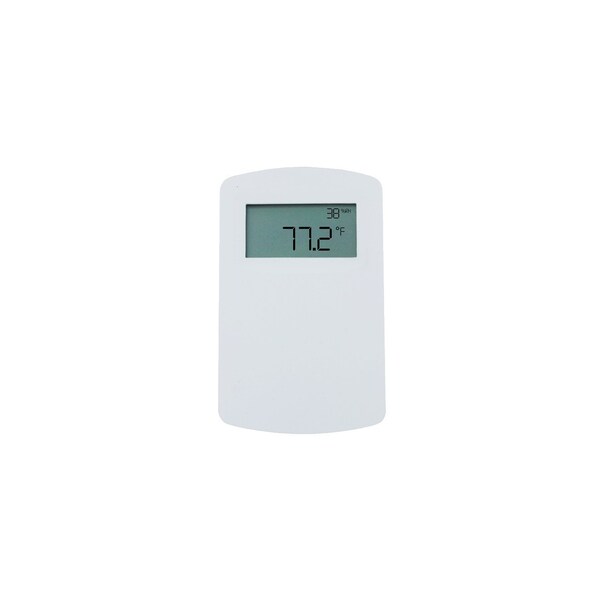

Hum/TempSnsr, 4.5", 2.8", 4 to 20 mA, CE
- Mfr # RHP-3N44
- Zoro # G407158417
product price:Â
$
165.99
/ea
Free Shipping & Returns
Key Features
Standards
CE
Output Power
4 to 20 mA
Enclosure Material
Polycarbonate
Operating Temperature - Minimum
-40 Degrees F
Electrical Connection
Screw Terminals
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RHP-3N44
- Zoro #
- G407158417
- UPC #
- -
- Country of Origin
- United States
- Standards
- CE
- Output Power
- 4 to 20 mA
- Enclosure Material
- Polycarbonate
- Operating Temperature - Minimum
- -40 Degrees F
- Electrical Connection
- Screw Terminals
- Compensated Temperature - Minimum
- -4 Degrees F
- Compensated Temperature - Maximum
- 140 Degrees F
- Operating Temperature - Maximum
- 140 Degrees F
- Hysteresis
- +/-0.8%
- Humidity Measurement - Maximum
- 100 %
- Input Voltage
- 10 to 35V DC
- Response Time
- 8 sec
- IP Rating
- IP20
- Series
- RHP-E/N
- Humidity Accuracy
- +/-3%
- Process Media Temperature Measurement - Minimum
- -20 Degrees F
- Mounting Style
- Wall Mount
- Humidity Measurement - Minimum
- 0 %
- Process Media Temperature Measurement - Maximum
- 140 Degrees F
- Temperature Accuracy
- +/-0.9 Degrees F @ 77 Degrees F
- Relative Humidity Sensor
- Capacitive
- Item
- Humidity/Temperature Sensor
- Temperature Sensor
- Solid State Band Gap
- Features
- Field Selectable Relative Humidity or Dew Point Output, LCD Display Options, Universal Analog Outputs
Dimensions
- Fits Chest Size
- Field Selectable Relative Humidity or Dew Point Output, LCD Display Options, Universal Analog Outputs
- Manufacturers Warranty Length
- 5 yr
- Overall Length
- 2.8 in
- Overall Height
- 4.5 in
- Overall Width
- 1.1 in
- Length
- 2.8 in
Description
Humidity/Temperature Sensor, Maximum Sensed Temperature 140 Degrees F, Minimum Sensed Temperature -20 Degrees F, Temperature Accuracy +/-0.9 Degrees F @ 77 Degrees F, Power Required 10 to 35V DC, Electrical Connections Screw Terminals, Overall Length 2.8 in, IP Rating IP20, Series RHP-E/N, Output 4 to 20 mA, Relative Humidity Range 0 to 100 Percent, Humidity Accuracy +/-3 Percent, Sensing Element Type Solid State Band Gap, Compensated Temperature Range -4 Degrees to 140 Degrees F
