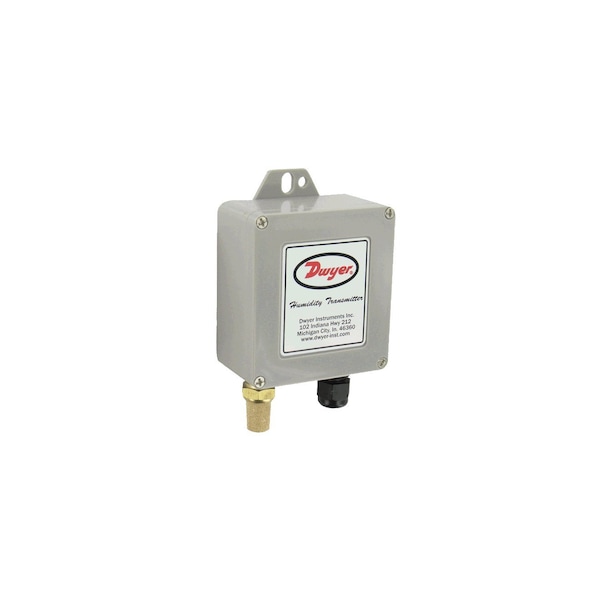

Hum/TempXTMR, 4.56", 2.75", 0 to 10VDC
- Mfr # WHT-322
- Zoro # G407158325
product price:Â
$
201.99
/ea
Free Shipping & Returns
Key Features
Width
3.9 in, 99.06 mm
Length
2.75 in
Height
1.8 in; 45.72 mm
Weight
0.3 lbs
Humidity Measurement - Maximum
100 %
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- WHT-322
- Zoro #
- G407158325
- UPC #
- -
- Country of Origin
- United States
- Weight
- 0.3 lbs
- Humidity Measurement - Maximum
- 100 %
- NEMA Enclosure Rating
- 3S
- Compensated Temperature - Maximum
- 140 Degrees F
- Electrical Connection
- Screw Terminals
- Operating Temperature - Maximum
- 140 Degrees F
- Series
- WHT
- Enclosure Material
- ABS
- IP Rating
- IP54
- Temperature Sensor
- Solid State Band Gap
- Relative Humidity Sensor
- Capacitive
- Standards
- CE, RoHS
- Compensated Temperature - Minimum
- -4 Degrees F
- Process Media Temperature Measurement - Maximum
- 140 Degrees F
- Output Power
- 0 to 10VDC
- Process Media Temperature Measurement - Minimum
- -40 Degrees F
- Input Voltage
- 10 to 35V DC
- Mounting Style
- Floor Mount
- Item
- Humidity/Temperature Transmitter
- Humidity Measurement - Minimum
- 0 %
- Includes Sintered Filter
- Yes
- Response Time
- 15 sec
- Humidity Accuracy
- +/-2% @ 20 to 80% RH; +/-3% @ 10 to 20%, 80 to 90% RH.
- Operating Temperature - Minimum
- -40 Degrees F
Dimensions
- Width
- 3.9 in, 99.06 mm
- Length
- 2.75 in
- Height
- 1.8 in; 45.72 mm
- Overall Width
- 1.48 in
- Overall Height
- 4.56 in
- Overall Length
- 2.75 in
Description
Humidity/Temperature Transmitter, Maximum Sensed Temperature 140 Degrees F, Minimum Sensed Temperature -40 Degrees F, Power Required 10 to 35V DC, Electrical Connections Screw Terminals, Overall Length 2.75 in, NEMA Rating NEMA 3S, IP Rating IP54, Series WHT, Output 0 to 10V DC, Relative Humidity Range 0 to 100 Percent, Humidity Accuracy +/-2 Percent @ 20 to 80 Percent RH; +/-3 Percent @ 10 to 20 Percent, 80 to 90 Percent RH., Sensing Element Type Solid State Band Gap
