  9. Mini-size flow switch, brass upper and lower body, 1-1/4" NPT, iron tee.

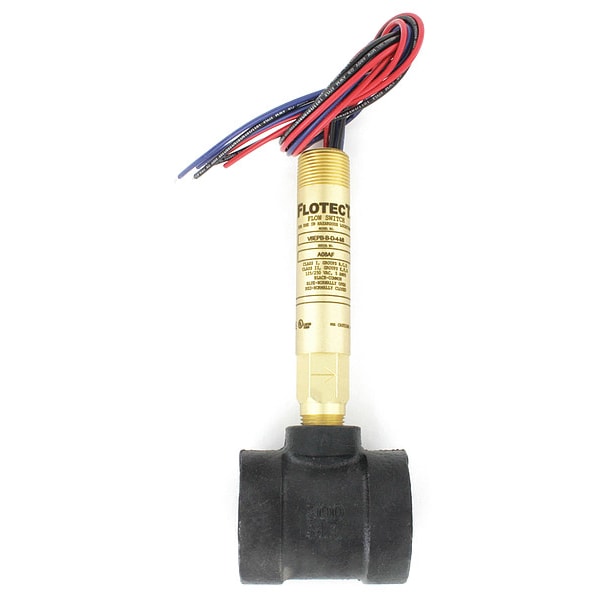

Dwyer Instruments Mini-size flow switch, brass upper and lower body, 1-1/4" NPT, iron tee. V6EPB-B-D-4-MI - main

Mini-size flow switch, brass upper and lower body, 1-1/4" NPT, iron tee.

  • Mfr # V6EPB-B-D-4-MI

  • Zoro # G0503773

product price: $552.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Brass
Type
Piston
For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1 1/4 in
Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V6EPB-B-D-4-MI
Zoro #
G0503773
UPC #
-
Country of Origin
United States

Dimensions

For Pipe Size
1/2 in, 1/4 in, 2 in, 3/8 in
Connection Size
1 1/4 in
Max. Duct Size (In.)
1 1/4 in
Connection Size (In.)
1-1/4 FNPT
Overall Height
4.8 in
Overall Length
3.6 in
Overall Width
3.6 in

Details

Item
Liquid Flow Switch
Housing Material
Brass
Type
Piston
Connection Type
NPT
Voltage
125/250V AC
Wetted Materials
301 Stainless Steel, 302 Stainless Steel, Brass, Ceramic
Max. Ambient Temp. (F)
167 Degrees F
Material of Construction
Brass
Min. Ambient Temp. (F)
-4 Degrees
Contact Rating
5A at 125/250V AC
Application
Coolant Loops, Other
Max. Pressure (PSI)
1,000 psi
Min. Fluid Temp. (F)
-4 Degrees F
Compliance
CSA, UL
For Use With
Liquids or Gases
Max. Fluid Temp. (F)
220 Degrees F
Hz
50/60
Flow Rate
4 gpm
Switch Type
DPDT
Standards
ATEX, CE Certified, CSA Certified, IECEx, KTL, UL Listed
Phase
Single
Body Material
Brass
Ambient Temperature - Maximum
167 Degrees F
Ambient Temperature - Minimum
-4 Degrees F
Flow Switch Type
Paddle
Hazardous Location Specification
Class I, Div 1 and 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G
Media Temperature - Maximum
220 Degrees F
Contact Rating (DC)
12 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models)
Switch Position
Normally Closed, Normally Open
Switch Enclosure
NEMA 4
Set Point Configuration
Adjustable
Media Temperature - Minimum
-4 Degrees F
Contact Rating (AC)
5 A @ 125/250V
Frequency
50 Hz, 60 Hz
Wetted Material
301 Stainless Steel, 302 Stainless Steel, 303 Stainless Steel, 304 Stainless Steel, Brass, Cast Iron, Ceramic, Steel

Description

Liquid Flow Switch, Ambient Temperature - Maximum 167 Degrees F, Ambient Temperature - Minimum -4 Degrees F, Connection Size 1 1/4 in, Connection Type NPT, Contact Rating (AC) 5 A @ 125/250V, Contact Rating (DC) 12 A (Inductive) @ 30V (CSA, ATEX and IECEx Models), 5 A Resistive @ 30V (CSA, ATEX and IECEx Models), Filter Rating - Maximum Not Applicable, Flow Rate - Maximum Not Applicable, Flow Rate - Minimum Not Applicable, Flow Switch Type Paddle, For Pipe Size 1/2 in, 1/4 in, 2 in, 3/8 in
