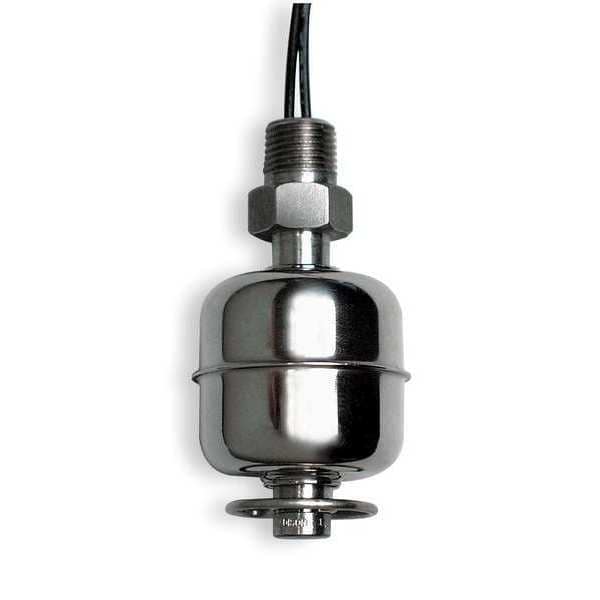

Alternator Closed Liquid Level Switch, Selectable, 240VAC, 300 psi Max Pressure, Stainless Steel

  • Mfr # M5000

  • Zoro # G2009147

product price:
$
57.29
/ea

Key Features

Voltage
240VAC
Max. Pressure
300 psi
Float Switch Float Material
Stainless Steel
Float Material
316 Stainless Steel
Float Specific Gravity
0.7
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M5000
Zoro #
G2009147
UPC #
-
Country of Origin
United States
Voltage
240VAC
Max. Pressure
300 psi
Item
Alternator Closed Liquid Level Switch
Float Switch Float Material
Stainless Steel
Float Material
316 Stainless Steel
Float Specific Gravity
0.7
VA Rating
30
Switch Function
Selectable
Mounting
Vertical Open Tank
Contact Form
SPST
Operating Temp. Range
392 Degrees F Max
Max. Current
0.28 A
Stem Material
316 Stainless Steel
Float Switch Contact Form
SPST
Max. Voltage
240 V
Standards
CE, CSA, NSF, UL Listed
Electrical Connections
22 AWG PTFE Coated 24 in Leads
Body Material
Stainless Steel
Float Rod Angle
Vertical
Series
M5000
Mounting Style
Vertical
Voltage Rating - Maximum
120 V AC, 240 V AC
Electrical Connection
Pre-Wired Cable
Proof Pressure
300 psi
Current Rating - Maximum
0.28 A
Minimum Media Specific Gravity
0.91
Operating Temperature - Maximum
392 Degrees F
Product Type
Alternator Closed Liquid Level Switch
Switch Structure
SPST

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Vertical Open Tank Mounting, Tank Connection Size 1/8 in NPT, Max. Pressure 300 psi, VA Rating 30, Operating Temp. Range 392 Degrees F Max, Overall Length 2.25 in, Float Material 316 Stainless Steel, Float Length 1.19 in, Float Dia. 1.13 in, Stem Material 316 Stainless Steel, Stem Length 1.63 in, Height 2.25 in, Width 1.18 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Stainless Steel
