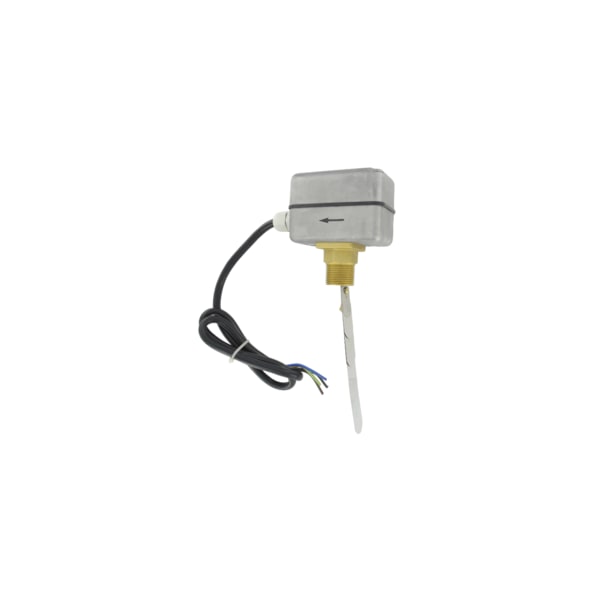

Paddle flow switch, 1" male BSPT.
Mfr # FS-2-BSPT
Zoro # G807149152
product price: $88.75
/ea
Free Shipping & Returns
Key Features
Features
Field adjustable set point adjustment screw allows for easy flow switch modification; Custom application set points enabled by field adjustable vane layers; Aluminum weatherproof housing permits outdoor installation
Agency Approvals
CE.
Wetted Materials
Bellow: Tin-bronze; Vane: SS; Body: Forged brass.
Switch Type
SPDT snap switch.
Enclosure Rating
NEMA 4 (IP64).
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FS-2-BSPT
Zoro #
G807149152
UPC #
-
Country of Origin
China
Details
Features
Field adjustable set point adjustment screw allows for easy flow switch modification; Custom application set points enabled by field adjustable vane layers; Aluminum weatherproof housing permits outdoor installation
Agency Approvals
CE.
Wetted Materials
Bellow: Tin-bronze; Vane: SS; Body: Forged brass.
Switch Type
SPDT snap switch.
Enclosure Rating
NEMA 4 (IP64).
Pressure Limits
145 psig (10 bar).
Temperature Limits
230°F (110°C).
Process Connection
1" male NPT or BSPT.
Electrical Rating
10 A res, 3 A ind @ 250 VAC.
Mounting Orientation
Switch must be installed vertically on horizontal pipe runs.
Set Point Adjustment
Four vane combinations and an adjustment screw.
Service
Compatible liquids.
Description
Paddle flow switch, 1" male BSPT.
