  13. Pressure Switch, Standard, 2SPDT, 1/4" FNPT, 3 to 75 psi Range, 316 Stainless Steel

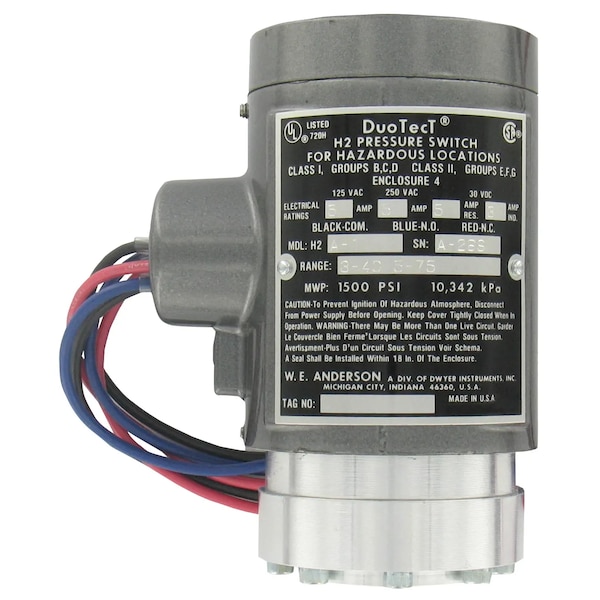

Dwyer Instruments Pressure Switch, Standard, 2SPDT, 1/4" FNPT, 3 to 75 psi Range, 316 Stainless Steel H2S-1 - main

Pressure Switch, Standard, 2SPDT, 1/4" FNPT, 3 to 75 psi Range, 316 Stainless Steel

  • Mfr # H2S-1

  • Zoro # G807143365

product price: $2,476.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
2SPDT
Pressure Connection Type
1/4" FNPT
Range
3 to 75 psi
Housing Material
316 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H2S-1
Zoro #
G807143365
UPC #
-
Country of Origin
United States

Details

Item
Pressure Switch
Action
Standard
Contact Form
2SPDT
Pressure Connection Type
1/4" FNPT
Range
3 to 75 psi
Housing Material
316 Stainless Steel
Standards
CSA, UL
Wetted Materials
316 SS chamber with FEP diaphragm and Buna-N O-ring standard. Fluoroelastomer or EPDM O-ring optional.
Features
Explosion-proof and weatherproof housing provides device protection for outdoor use or harsh environment operation; UL listed, CSA approved to support rigorous process applications and regulations; Independent piston action design for either gas or liquid allows switches to active together or independently based on settings; Mounting in any position and not affected by vibration provides reliable switching for equipment
Deadband
Approximately 10% of range.
Set Point Adjustment
Internal nut.
Conduit Connection
3/4" female NPT.
Switch Type
Two SPDT snap switches.
Pressure Limit
1500 psig (103 bar).
Agency Approvals
CSA, UL.
Mounting Orientation
Any position.
Temperature Limit
275°F (135°C). CSA approved: -20 to 90°C (-4 to 184°F).

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
