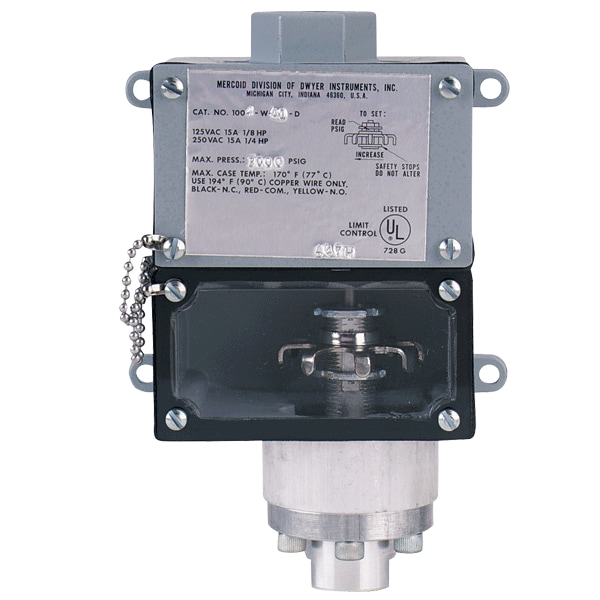

Pressure Switch, Standard, SPDT, 1/4" FNPT, 5 to 40 psi Range
Mfr # 1003W-A1-D
Zoro # G210474759
product price: $855.99
/ea
Free Shipping & Returns
Key Features
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/4" FNPT
Range
5 to 40 psi
Standards
CE, UL
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1003W-A1-D
Zoro #
G210474759
UPC #
-
Country of Origin
United States
Details
Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Pressure Connection Type
1/4" FNPT
Range
5 to 40 psi
Standards
CE, UL
Features
Weatherproof housing is ideal for a wide variety of applications where dust or water is present; Spring movement design provides for control in any mounting position and prevents contact chatter reducing false or inconsistent switching
Pressure Limit
3000 psig (206.8 bar).
Switch Type
SPDT snap switch.
Temperature Limits
-30 to 170°F (-35 to 77°C).
Mounting Orientation
Any position.
Conduit Connection
3/4" female NPT.
Agency Approvals
CE, UL.
Set Point Adjustment
Internal thumbwheel.
Description
Weatherproof pressure switch, adj. range 5-40 psig (.48-2.8 bar), approx. deadband (fixed) 2 psig (.14 bar).
