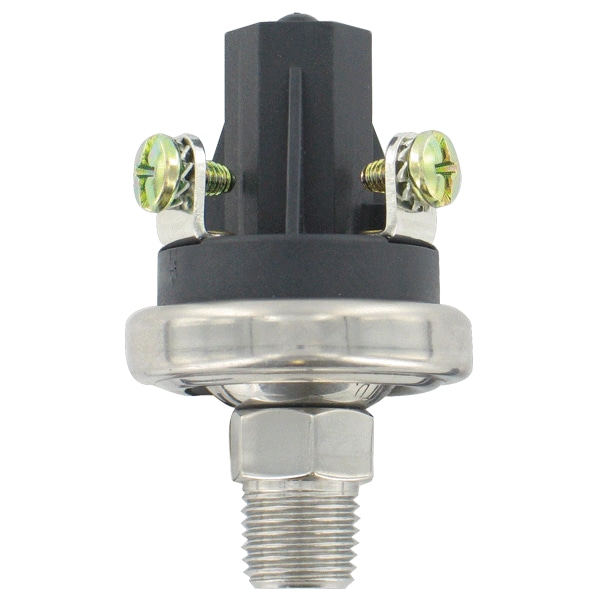

Pressure Switch, Standard, SPST, 1/4" MNPT, 0.5 to 150 psi Range, 18-8 Stainless Steel
Mfr # A6-853221
Zoro # G107143461
CAD Available
product price: $38.99
/eaKey Features
CAD Drawing
Action
Standard
Contact Form
SPST
Pressure Connection Type
1/4" MNPT
Range
0.5 to 150 psi
Housing Material
18-8 Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A6-853221
Zoro #
G107143461
UPC #
-
Country of Origin
China
Details
Item
Pressure Switch
Action
Standard
Contact Form
SPST
Pressure Connection Type
1/4" MNPT
Range
0.5 to 150 psi
Housing Material
18-8 Stainless Steel
Standards
CE
Wetted Materials
Base: 304 SS, Diaphragm: polyimide film.
Features
High switch cycle means long life for extended duty applications; Mounting in any position and feature simple makes a reliable switching for equipment and OEM applications
Mounting Orientation
Switch can be installed in any position.
Temperature Limits
-40 to 248°F (-40 to 120°C).
Repeatability
±10% of set point.
Switch Type
1 SPST NO, 1 SPST NC. NO and NC switch independent from each other.
Service
Air, motor oils, transmission oils, jet fuels, and similar hydrocarbon media. (Not for water use).
Agency Approvals
CE.
Set Point Adjustment
Screw.
Pressure Limits
Operating Pressure: 150 psi (10.3 bar) for 0.5-24 psi set point ranges, 250 psi (17.2 bar) for 25-150 psi set-point ranges. Proof Pressure: 500 psi (34.5 bar). Burst Pressure: 750 psi (51.7 bar) for 0.5-24 psi set point ranges, 1250 psi (86.2 bar) for 25-150 psi set point ranges.
CAD Available
Yes
Description
Pressure switch, set point range 91-150 ±10 psi (6.27-10.34 ±0.69 bar).
