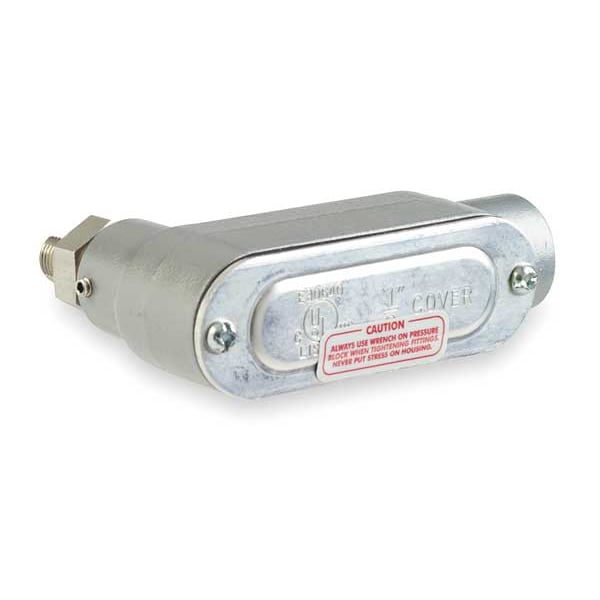

Dwyer Instruments Pressure Transmitter, 0 - 15 PSI, Conduit 626-07-CB-P1-E5-S1 - main

Pressure Transmitter, 0 - 15 PSI, Conduit

  • Mfr # 626-07-CB-P1-E5-S1

  • Zoro # G0056761

product price:  $291.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.25% of Full Scale
Housing Material
Aluminum
Output
4 to 20mA DC
Electrical Connections
Screw Terminals
Process Connection Type
NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
626-07-CB-P1-E5-S1
Zoro #
G0056761
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Process Connection Size - Transmitter
1/4 in
Manufacturers Warranty Length
1 yr
Overall Length
1.281 in
Overall Width
5.5 in
Overall Height
3.5 in

Details

Item
Pressure Transmitter
Accuracy
+/-0.25% of Full Scale
Housing Material
Aluminum
Output
4 to 20mA DC
Electrical Connections
Screw Terminals
Process Connection Type
NPT
Operating Temp.
0 to 200 F
Power Required
10 to 35V DC
Response Time
300 msec
Series
626
Electrical Connections - Transmitter
Terminal Board
Accuracy - Transmitter
+/-0.25% Full Scale
Power Required - Transmitters
13 to 30V DC
Housing
Cast Aluminum
Compatible With
Liquids and Gas
Wetted Materials
316 SS and 316L SS
Loop Resistance
0 to 1300 ohms
Transmitter Type
Pressure Transmitter
Process Connection Type - Transmitter
MNPT
NEMA Rating
4X
Wetted Materials - Transmitters
316 Stainless Steel, 316L Stainless Steel
Output - Transmitter
4 to 20mA DC
Range
0 to 15 psi
Max. Pressure (PSI)
30 psi
Wiring Entry - Transmitter
1/2 in FNPT
Operating Temp. - Transmitter
0 Degrees to 200 Degrees F
Features
Protection in Harsh Environments, Shock and Vibration Resistance, Wide Range of Models and Connections That can Meet Pressure Measurement Specifications From Low to Very High
Range Values - Transmitter
0 to 15
Includes
Instructions
Thermal Error
+/-0.02%
Range Units - Transmitter
psi
Type of Pressure
Gauge
Wiring Entry
1/2 in FNPT Conduit Connection
For Use With Media Type
Compressors, Hydraulics, Pumps
Pressure Units
psig
Minimum Pressure
0 psi
NIST Traceable Certificate
No
Number of Wires
2
Maximum Operating Temperature
200 Degrees F
Standards
CE, NSF, UL Listed
Maximum Pressure
15 psi
Explosion/Fire Proof
No
Intrinsically Safe
No
Maximum Loop Resistance
0 to 1,250 Ohm Max
Weight
10 oz
Process Connection Gender
Male
Overpressure
150 psig
Electrical Connection
Screw Terminals
Minimum Operating Temperature
0 Degrees F
Loop Resistance - Maximum
0 to 1,250 Ohm Max
Pressure Type Measured
Gauge
Intrinsic Safety
Not Specified Intrinsically Safe
Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
200 Degrees F
Output Power
4 to 20mA DC
Process Media Temperature - Minimum
0 Degrees F
Pressure Measurement - Maximum
15 psi
Input Voltage
10 to 35V DC
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included

Description

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 15 psi, Electrical Connections Screw Terminals, Output 4 to 20mA DC, Accuracy +/-0.25 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 10 to 35V DC, NEMA Rating 4X, Series 626, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 200 Degrees F, Minimum Operating Temperature 0 Degrees F, Housing Material Aluminum
