  5. Industrial Compound Gauge, 30 to 0 to 150 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

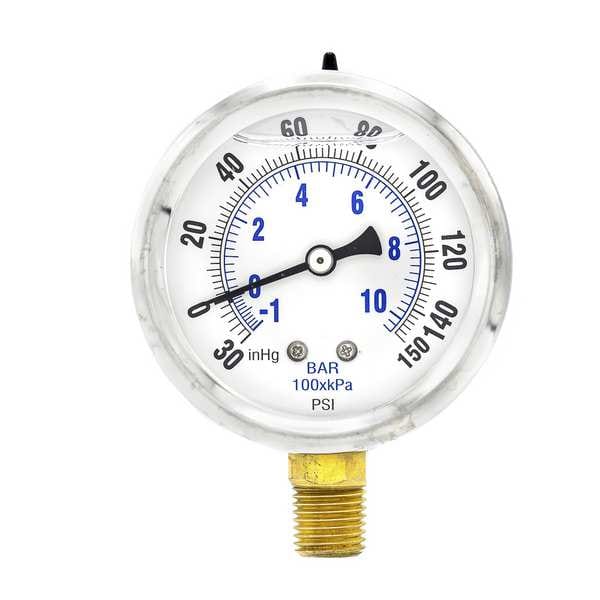

Pic Gauges Industrial Compound Gauge, 30 to 0 to 150 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PRO-201L-254CF - main

Industrial Compound Gauge, 30 to 0 to 150 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PRO-201L-254CF

  • Zoro # G5119987

product price:  $16.69
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRO-201L-254CF
Zoro #
G5119987
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Length
3.30"
Manufacturer Warranty Length
1 yr
Case Diameter
2.65 in
Nominal Dial Size
2 1/2 in
Case Depth
1.2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Stainless Steel
Series
201L
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0 to 150
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Includes
Vent Plug
Gauge Application
General Purpose
Gauge Filled With
Glycerin
Case Color
Metallic
Smallest Graduation
2 psi, 5 in Hg
Gauge Primary Range Smallest Graduation
5/2
Case Material
Stainless Steel
Socket Material
Copper Alloy
Connection Type
MNPT
Standards
ASME
Wetted Materials
Copper
Dry Dampening Feature
None
Gauge Case Liquid
Glycerin
Accuracy Scale
Mid-Scale
Dial Color
White
Pointer Material
Aluminum
Includes Vent Plug
Yes
Bezel Material
Stainless Steel
Secondary Scale Units
bar
Process Connection Gender
Male
Scale Type
Dual
Pointer Color
Black
Bezel Mounting Type
Fixed
Freeze Resistant Movement
No
Sensor Material
Copper Alloy
Vibration Resistance
Liquid-Filled
Field Fillable
No
Secondary Pressure Range
0 to 10
Cleaned for Oxygen Service
No
Pressure Gauge Type
Industrial Pressure Gauge
Primary Scale Minor Graduations
2, 5
Includes Mounting Hardware
No
Ambient Operating Temperature Range
-30 Degrees to 180 Degrees F
Non-Sparking
No
Includes Calibration Certificate
No
Accuracy Grade
ASME B40.100 Grade A
Removable Bezel
No
Pressure Range Type
Compound
Maximum Pressure
150 psi
Operating Temperature Range
30 Degrees to 160 Degrees F
Compatible with Series
201L
Secondary Scale Pressure Measurement - Minimum
0 bar
Secondary Scale Pressure Measurement - Maximum
10 bar
Secondary Scale Vacuum Measurement - Minimum
0 bar
Process Media Temperature - Maximum
160 Degrees F
Operating Temperature - Maximum
180 Degrees F
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
150 psi
Operating Temperature - Minimum
-30 Degrees F
Primary Scale Pressure Measurement - Maximum
150 psi
Primary Scale Pressure Measurement - Minimum
0 psi
Case Liquid
Glycerin
Primary Scale Vacuum Measurement - Minimum
30 in Hg
Process Media Temperature - Minimum
30 Degrees F
NEMA Enclosure Rating
No Enclosure

Description

Industrial Compound Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 150, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
