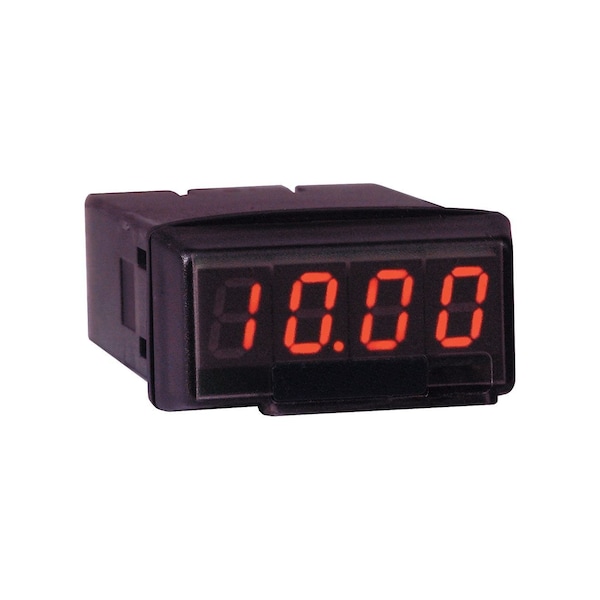

Process Indicator, LCI132 Style
- Mfr # LCI132-01
- Zoro # G707146534
product price:Â
$
333.99
/ea
Free Shipping & Returns
Key Features
Width
2.4 in
Length
4.4 in
Height
1.3 in
Weight
0.15 lbs
Digital Display Screen Color
Red
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LCI132-01
- Zoro #
- G707146534
- UPC #
- -
- Country of Origin
- Spain
- Weight
- 0.15 lbs
- Digital Display Screen Color
- Red
- AC Voltage Input - Minimum
- 21 V AC
- Item
- Process Indicator
- Series
- LCI132
- Product Type
- Process Indicator
- DC Voltage Input - Minimum
- 70 V DC
- Digital Display Screen Type
- LED
- Parameters Measured
- AC Current, AC Voltage
- Current Display - Maximum
- 20 mA
- Display Span - Minimum
- -1,999
- AC Voltage Input - Maximum
- 53 V AC
- NEMA Enclosure Rating
- 4X
- Display Span - Maximum
- 9,999
- Number of Display Digits
- 4
- Accuracy
- +/-0.2% of Range + 3 Digits; +/-0.4% of Range + 4 Digits
- Voltage Display - Minimum
- 10 V DC
- Voltage Display - Maximum
- 200 V DC
- DC Voltage Input - Maximum
- 10.5 V DC
- Current Display - Minimum
- -20 mA
Dimensions
- Width
- 2.4 in
- Length
- 4.4 in
- Height
- 1.3 in
- Overall Depth
- 4.4 in
- Digit Height - Maximum
- 0.39 in
- Manufacturers Warranty Length
- 3 yr
- Overall Width
- 2.4 in
- Cutout DIN Size
- Jan-32
- Overall Height
- 1.3 in
Description
Process Indicator, Process, Input Range +/-10 V DC, +/-100 V DC, +/-20 mA DC, +/-20 V DC, +/-200 V DC, Accuracy +/-0.2 Percent of Range + 3 Digits; +/-0.4 Percent of Range + 4 Digits, Display Span 0 to 9,999 (AC); -1,999 to 9,999 (DC), Display Digits 4, Fits 1/32 DIN, Connector Type Panel Mount, Not Applicable Interface, 4X NEMA Rating, Mounting Panel, Style LCI132, Manufacturers Warranty Length 3 yr
