Shop FLUKE

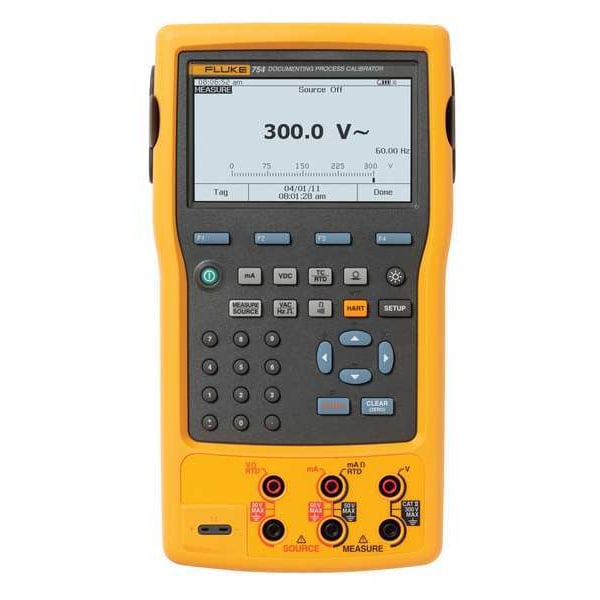

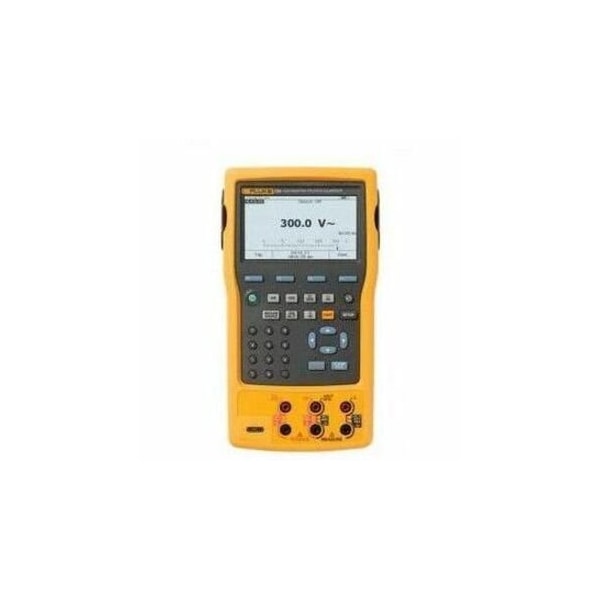

Documenting Process Calibrator, HART

  • Mfr # Fluke-754
  • Zoro # G4183907
product price:
$
10,939.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Includes
(2) AC280 Hook Clips, (3) Extended Tooth Alligator Clips, (3) TP220 Test Probes, 754HHC HART Communications Cable, Battery Charger, Carrying Case, USB Cable
Display
Graphical
Standards
ASNI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92, EN 610-1:1993, UL3111
Interface
USB
Loop Supply Voltage
26 V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Fluke-754
Zoro #
G4183907
UPC #
095969614283
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Multifunction Calibrator
Includes
(2) AC280 Hook Clips, (3) Extended Tooth Alligator Clips, (3) TP220 Test Probes, 754HHC HART Communications Cable, Battery Charger, Carrying Case, USB Cable
Display
Graphical
Standards
ASNI/ISA S82.01-1994, CAN/CSA C22.2 No 1010.1-92, EN 610-1:1993, UL3111
Interface
USB
Loop Supply Voltage
26 V
RTD Type
Cu10 (427), Ni120 (672), Pt100 (385), Pt100 (3916), Pt100 (3926), Pt1000 (385), Pt200 (385), Pt500 (385)
Powered By
Rechargable Battery Pack
Current Measurement Range
0 to 110mA DC
RTD Temperature Range
-200 Degrees to 800 Degrees C
Frequency Measurement Range
0 to 50 kHz
Max. Loop Current
24 mA
Thermocouple Temperature Range
-250 Degrees to 2,500 Degrees C
Frequency Source Range
0.01 to 50 kHz
Calibration Certificate
NIST
Source Current
0 to 22mA DC
Intrinsically Safe
No
Insulation Category
Cat II 300V
Measurement Functions
Current, Frequency, Resistance, TC and RTD, Voltage (AC and DC)
External Pressure Range
Dependent On Pressure Module
Thermocouple Type
B, BP, C, E, J, K, L, N, R, S, T, U, XK
Resistance Source
0 to 10 kilohm
Basic DC Accuracy
+/- 0.05% + 0.05V
Voltage Measurement Range
0V AC to 300V AC, 0V DC to 300V DC
Resistance Measurements
0 to 10 kilohm
Pressure Modules
29 Ranges
Source Voltage
0V DC to 15V DC
Shop By
Hot Buys
Loop Current - Maximum
25 mA
Communication Protocol
HART
IP Rating
IP52
Source Current - Maximum
22 mA
Resistance Measurement - Minimum
1 kiloohm
Thermocouple Temperature - Maximum
1,472 Degrees F
Current Measurement - Maximum
110 mA
Frequency Measurement - Minimum
11.01 kHz
Source Voltage - Minimum
1 V
Frequency Measurement - Maximum
50 kHz
Resistance Measurement - Maximum
10 kiloohm
Thermocouple Temperature - Minimum
482 Degrees F
Source Resistance - Minimum
1 kiloohm
Source Voltage - Maximum
15 V
Current Measurement - Minimum
30 mA
Battery Chemistry
Lithium Ion
Voltage Measurement - Minimum
3 V AC/DC
RTD Temperature - Maximum
1,472 Degrees F
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance, RTD, TC
Includes Batteries
Batteries Included
Source Frequency - Maximum
50 kHz
Source Resistance - Maximum
10 kiloohm
Source Frequency - Minimum
22 kHz
Digital Display Screen Type
LCD
Intrinsic Safety
Not Specified Intrinsically Safe
Voltage Measurement - Maximum
300 V AC/DC
RTD Temperature - Minimum
-328 Degrees F
Source Current - Minimum
0 mA
Calibration Certificate Type
NIST

Description

Maximize your investment with the Fluke 754 Documenting Process Calibrator-HART. This portable calibrator combines documenting, sourcing, simulation, and measurement functions in a single handheld unit. It supports instrument calibration, troubleshooting, and routine maintenance activities using one device.

Why Choose the Fluke 754?

  • Multi-function capability: Sources, simulates, and measures pressure, temperature, and electrical signals in one handheld unit.
  • Integrated HART communication: Supports calibration and maintenance of HART smart transmitters without a separate communicator.
  • Dual display: Displays sourced and measured parameters simultaneously.
  • Power options: Rechargeable Li-Ion battery supports up to 10 hours of operation, with direct AC power capability.
  • Documentation support: Automates calibration procedures and stores results for recordkeeping.
  • Portable construction: Designed for use in industrial settings.

Key Measurement and Source Capabilities

  • AC and DC voltage
  • mA loop with 24V loop power
  • Pressure (compatible with Fluke 750P Series Pressure Modules)
  • Thermocouples and RTDs
  • Frequency
  • Resistance

Enhanced Process Calibration
The Fluke 754 includes a built-in HART interface that supports many digital communicator functions. It accommodates fast-pulsed RTD transmitters and PLCs, along with auto-step and ramping functions, custom units, programmable measurement delay, and one- or two-point switch testing within a single device.
