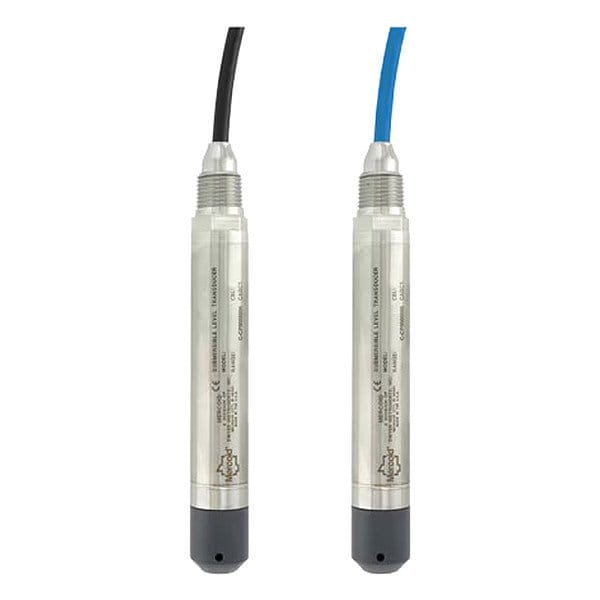

Submersible Level Transmitter, 1" Dia.

  • Mfr # SBLTX-5-40-ETFE

  • Zoro # G816456821

product price:  $1,172.99
/ea
Free Shipping & Returns

Key Features

Response Time
50 msec
Process Connection Size
1/2 in
Cable Coating
ETFE
Pressure Measurement - Maximum
5 psi
Thermal Error
+/-0.02%
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SBLTX-5-40-ETFE
Zoro #
G816456821
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/2 in
Overall Height
7.19 in
Cable Length
40 ft
Overall Diameter
1 in
Measuring Depth - Maximum
275 ft
Sensor Length
7.25 in

Details

Item
Submersible Level Transmitter
Response Time
50 msec
Cable Coating
ETFE
Pressure Measurement - Maximum
5 psi
Thermal Error
+/-0.02%
Loop Resistance - Maximum
900 ohm
Electrical Protection
No
Housing Material
316 Stainless Steel
Accuracy
+/-0.25% Full Scale
Electrical Connection
Cable & Wire Leads
Pressure Measurement - Minimum
0 psi
Standards
ATEX II 1 G Ex ia IIC T4 Ga and II 1 D Ex ia IIIC T135C Da (According to Control Drawing 001833-43), CE, Class II, Div. 1, Groups E, F, G, Class III, Div. 1, cULus intrinsically safe for Class I, Div. 1, Groups A, B, C, D
Operating Temperature - Maximum
176 Degrees F
Series
SBLTX
Tip Design
Bullet Nose
Process Connection Type
NPT
Input Voltage
10 to 28V DC
Seal Material
Fluoroelastomer
Output Power
4 to 20mA DC
Operating Temperature - Minimum
-4 Degrees F
IP Rating
IP68

Description

Submersible Level Transmitter, Tip Design Bullet Nose, Accuracy +/-0.25 Percent Full Scale, Cable Length 40 ft, Cable Coating ETFE, Process Connection Size 1/2 in, Process Connection Type NPT, Sensor Length 7.25 in, Electrical Protection No, Series SBLTX, Housing Material 316 Stainless Steel

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
