Shop SIEMENS

Module

  • Mfr # 6ES7134-6JF00-0CA1

  • Zoro # G309016167

product price:
$
722.99
/ea
Free Shipping & Returns

Key Features

Depth
58 millimetre
Width
15 millimetre
Height
73 millimetre
Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Number of HW interfaces Wireless
0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6ES7134-6JF00-0CA1
Zoro #
G309016167
UPC #
-
Country of Origin
Germany

Dimensions

Depth
58 millimetre
Width
15 millimetre
Height
73 millimetre

Details

Explosion protection categories for gases
ATEX gas-ex-protection, Cat. 3
Number of HW interfaces Wireless
0
Resolution of the analog inputs
16 bit
Manufacturer product root
Analog module input
Corresponding operating medium (Ex ia)
No
Protection type IP
IP20
Supply voltage type
DC
min. supply voltage with DC
19 volt
Input signal can be configured
Yes
Rack-assembly possible
Yes
Number of HW interfaces serial RS232
0
Input, thermoelement present
Yes
Number of analog inputs
8
Input, current present
No
System components present
Yes
Number of HW interfaces PROFINET
0
Input, resistance thermometer present
Yes
Number of HW interfaces serial TTY
0
Field bus connection possible via separate bus couplers
Yes
Number of HW interfaces serial RS422
0
Manufacturer product family
ET 200SP
Front installation possible
Yes
Number of analog outputs
0
analog inputs, configurable
Yes
description of product type
AI 8xRTD/TC 2-wire HF
Power loss, static, current-independent [Pls]
1 watt
Number of HW interfaces parallel
0
Number of HW interfaces serial RS485
0
Number of HW interfaces Industrial Ethernet
0
Input, voltage present
Yes
Bearing track assembly possible
Yes
Corresponding operating medium (Ex ib)
No
Input, resistance present
Yes
Number of HW interfaces, other
0
max. supply voltage with DC
28.8 volt
wall mounting/direct mounting possible
No

Description

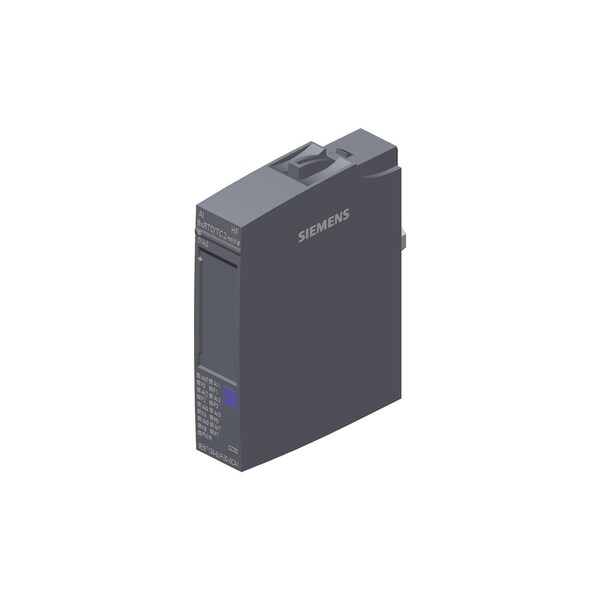

SIMATIC ET 200SP, Analog input , AI 8xRTD/TC 2-wire High Feature suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.1%
