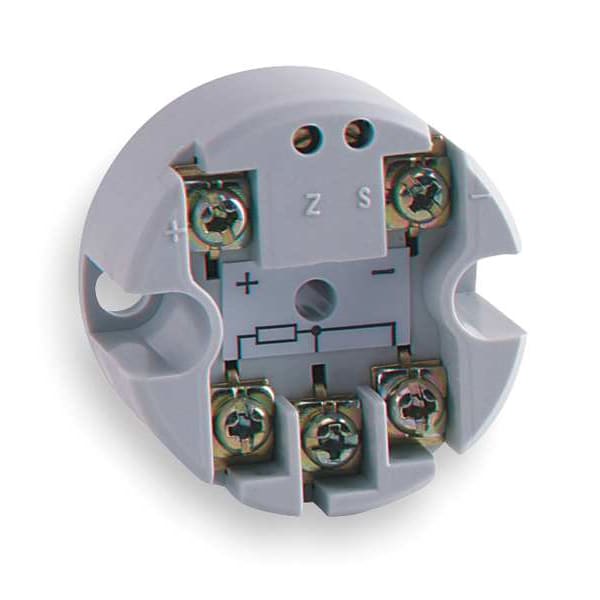

Temperature transmitter, Pt100 RTD input, range 32 to 752 Degrees F (0 to 400 Degrees C).

Mfr # 651A-40
Zoro # G3240264

240.99

Free Shipping & Returns

Key Features

Output

4 to 20mA DC

Electrical Connection

Screw Terminals

Temp. Accuracy

+/-0.2% of Reading

Temp. Range

32 Degrees to 752 Degrees F

Standards

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 651A-40
Zoro #: G3240264
UPC #: -
Country of Origin: United Kingdom

Dimensions

Overall Diameter: 1.66 in

Details

Item: Temperature Transducer
Output: 4 to 20mA DC
Electrical Connection: Screw Terminals
Temp. Accuracy: +/-0.2% of Reading
Temp. Range: 32 Degrees to 752 Degrees F
Standards: CE
Sensor Type: RTD
Electrical Connections: Screw Terminals
Mounting: Surface
Power Required: 10 to 32V DC
Includes: Instructions
Response Time: 200 msec
Features: Standard Temperature Sensor Head Enclosure Mounting, Various Preset Ranges Available
Storage Temperature Range: 160 Degrees F (70 Degrees C)
Series: 651
Minimum Sensed Temperature: 32 Degrees F
Temperature Accuracy: +/-0.2 Degrees C plus 0.2% reading
Input Type: RTD
Sensing Element Type: Pt100 RTD
Maximum Sensed Temperature: 752 Degrees F
Temperature Sensor: RTD
Output Power: 4 to 20mA DC
Mounting Style: Head Mount
Input Voltage: 10 to 32V DC
Process Media Temperature Measurement - Maximum: 752 Degrees F
Compensated Temperature - Minimum: 32 Degrees F

Description

Temperature Transducer, Maximum Sensed Temperature 752 Degrees F, Minimum Sensed Temperature 32 Degrees F, Temperature Accuracy +/-0.2 Degrees C plus 0.2 Percent reading, Power Required 10 to 32V DC, Electrical Connections Screw Terminals, Series 651, Output 4 to 20mA DC, Sensing Element Type Pt100 RTD, Features Standard Temperature Sensor Head Enclosure Mounting, Various Preset Ranges Available, Includes Instructions
