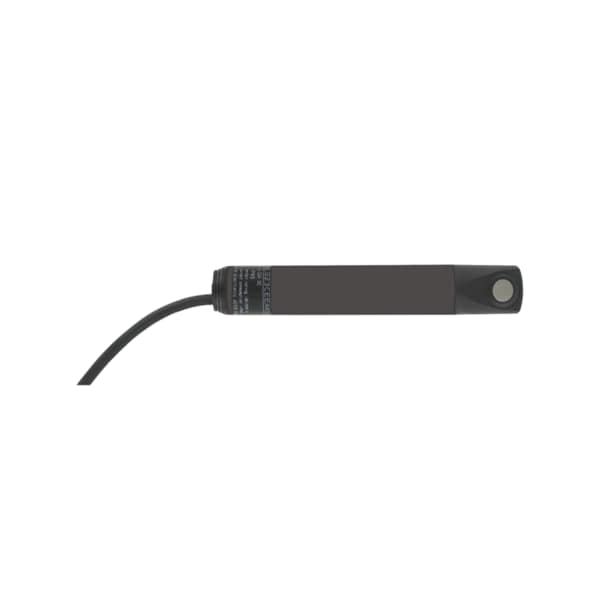

Air Flow Switch, 1,969 fpm, 3 A, PBT
- Mfr # AVFS-1
- Zoro # G907149007
product price:Â
$
427.99
/ea
Free Shipping & Returns
Key Features
Temperature Limits
5 to 122°F (-10 to 50°C).
Humidity Limits
0-90% RH.
Repeatability
±5% FS.
Enclosure Rating
IP65.
Display
1 Red LED/1 Green LED.
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- AVFS-1
- Zoro #
- G907149007
- UPC #
- -
- Country of Origin
- Romania
- Temperature Limits
- 5 to 122°F (-10 to 50°C).
- Humidity Limits
- 0-90% RH.
- Repeatability
- ±5% FS.
- Enclosure Rating
- IP65.
- Display
- 1 Red LED/1 Green LED.
- Features
- Integral red/green air flow status LED's; Flush sensor design limits issues due to dust or particulate in the air flow; IP65 construction
- Agency Approvals
- CE.
- Pressure Limit
- 14.7 psig (1 bar).
- Electrical Rating
- 3 A @ 30 VDC/250 VAC.
- Power Consumption
- 3 VA.
- Wetted Materials
- PBT body, titanium sensor.
- Housing
- PBT.
- Switch Type
- N.O. SPST.
- Response Time
- 3-60 seconds. Varies with flow and set point.
Description
Air Flow Switch, Contact Form SPST, Input Voltage 30V DC/250V AC, Full Load Current 3 A, Maximum Air Velocity 1,969 fpm, Minimum Actuation Air Velocity - Horizontal 197 fpm, Maximum Duct Air Temperature 122 Degrees F, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 5 Degrees F, Housing Material PBT, NEMA Rating 4X, Application Air Handlers, Damper Feedback, Fan Monitoring, Filter Monitoring, Overall Width 7/8 in, Overall Height 5 1/2 in
