1-1/2" FNPT Brass Pneumatic Ball Valve Inline

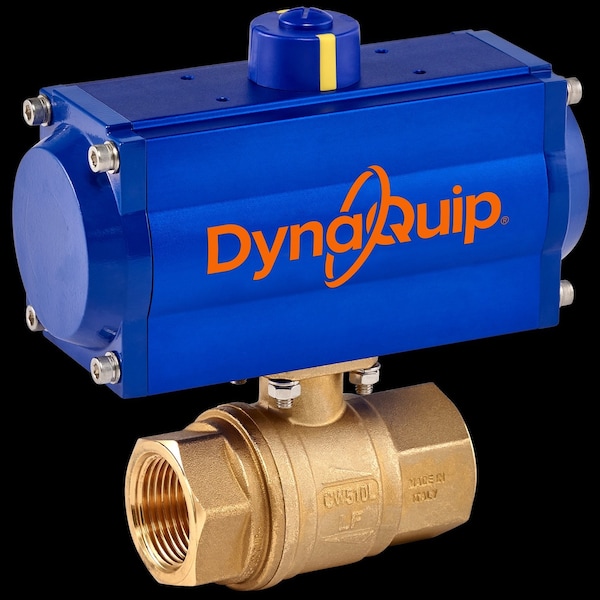

Dynaquip Controls 1-1/2" FNPT Brass Pneumatic Ball Valve Inline PHH27ATDA063A
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$462.61
  • Item: Pneumatic Actuated Ball Valve
  • Body Material: Forged Brass
  • Connection Type: FNPT
See full product details
This item ships free.
Total: $462.61

Dynaquip Controls #PHH27ATDA063A Specifications

  • Item: Pneumatic Actuated Ball Valve
  • Body Material: Forged Brass
  • Connection Type: FNPT
  • Pipe Size: 1 1/2 in
  • Operation: Double Acting
  • Seat Material: PTFE
  • Ball Material: Chrome Plated Brass
  • Valve Structure: 2-Piece
  • Standards: NEMA 4X
  • Body Seal Material: PTFE/Viton
  • Max. Pressure: 600 psi CWP
  • Stem Material: Nickel Plated Brass
  • Required Pressure: 80 psi
  • Mount: Direct
  • Body Style: Inline
  • Port: Full
  • Temp. Range: -4 Degrees to 176 Degrees F
  • Ball Valve Product Group: Actuated
  • Max. Inlet Pressure: 120 psi
  • Ball Valve Basic Body Material: Brass
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Pneumatic Actuated Ball Valve, Body Material Forged Brass, Body Style Inline, Valve Structure 2-Piece, Pipe Size 1 1/2 in, Connection Type FNPT, Full Port, Max. Pressure 600 psi CWP, Required Pressure 80 psi, Max. Inlet Pressure 120 psi, Temp. Range -4 Degrees to 176 Degrees F, Ball Material Chrome Plated Brass, Seat Material PTFE, Stem Material Nickel Plated Brass, Body Seal Material PTFE/Viton, Standards NEMA 4X

Restrictions and Compliance

  • This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications.
  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
