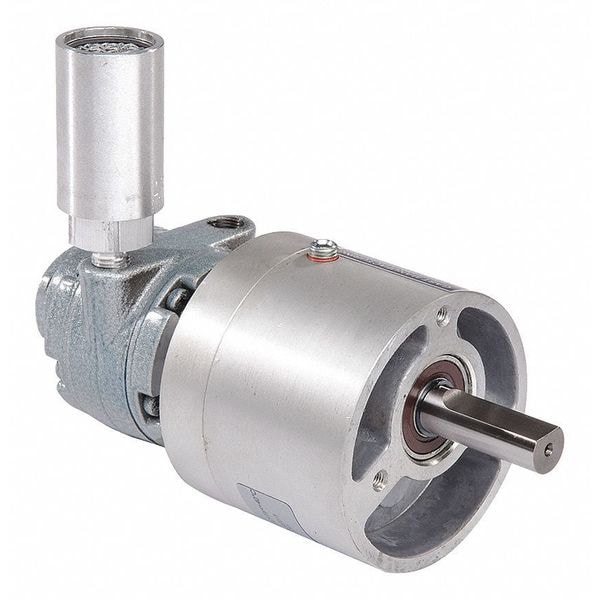

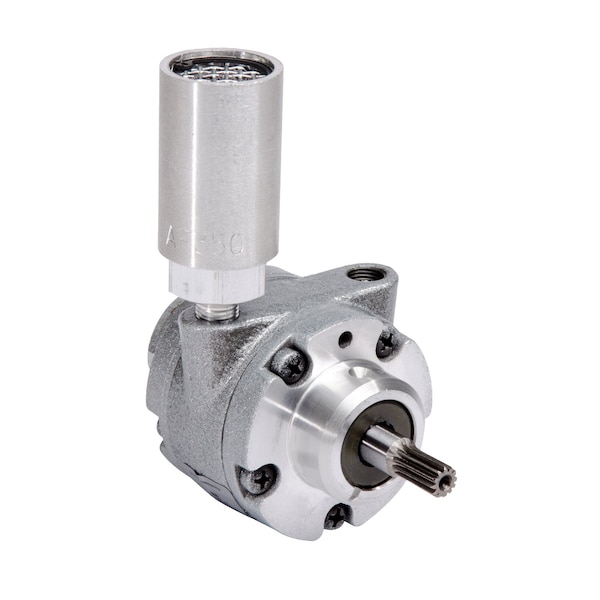

Gast Standard 1Up-Nrv-4 Air Motor
Mfr # 1UP-NRV-4
Zoro # G0602616
product price:Â $386.99
/ea
Free Shipping & Returns
Key Features
Motor Design
AIR
Rotation
CW/CCW
Overall Length
4 3/4 in
Includes
Muffler
Length Less Shaft
3 11/20 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 1UP-NRV-4
- Zoro #
- G0602616
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 4 3/4 in
- Length Less Shaft
- 3 11/20 in
- Shaft Length
- 1 1/8 in
- Inlet Size
- 1/8 in
- Overall Height
- 2 1/4 in
- Manufacturers Warranty Length
- 1 yr
- Overall Width
- 2 1/2 in
- Shaft Diameter
- 3/8 in
- Outside Diameter
- 2 1/2 in
Description
Gast Standard 1Up-Nrv-4 Air Motor, Output Power @ Maximum Speed 0.45 hp, Maximum Torque 4.9 in-lb, No Load Speed 6,000 RPM, Maximum Flow Rate 27 cfm, Shaft Diameter 3/8 in, Shaft Length 1 1/8 in, Mount Type Hub, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 80 psi, Includes Muffler, Keyway Width Not Applicable, Weight 3 lb, Housing Material Grade G2500
