  9. 1" FNPT Brass Electronic Ball Valve 3-Way, Port: Standard L

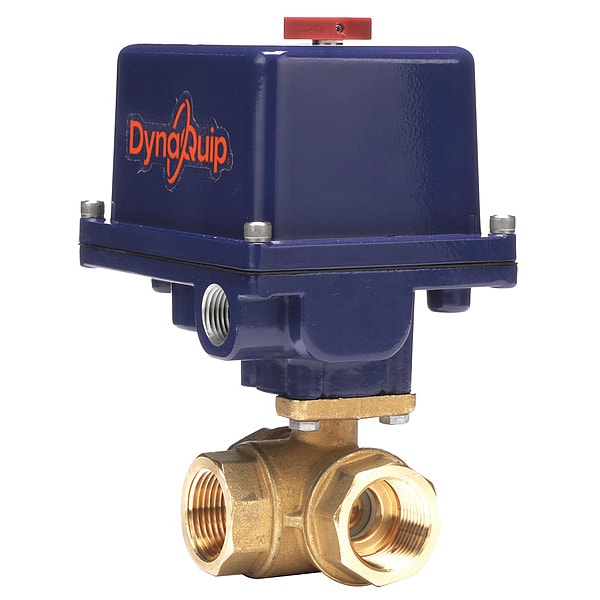

Dynaquip Controls 1" FNPT Brass Electronic Ball Valve 3-Way, Port: Standard L EYHG5AUE25 - main

1" FNPT Brass Electronic Ball Valve 3-Way, Port: Standard L

  • Mfr # EYHG5AUE25

  • Zoro # G0496666

product price: $609.99
/ea
Free Shipping & Returns

Key Features

Body Material
Brass
Body Style
3-Way
Connection Type
FNPT x FNPT x FNPT
Ambient Temp. Range
-40 Degrees to 150 Degrees F
Body Seal Material
Viton
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EYHG5AUE25
Zoro #
G0496666
UPC #
649848037122
Country of Origin
United States

Dimensions

Pipe Size
1"
Overall Length
3.74 in
Outlet Connection Size - Side 2
1 in
Nominal Valve Size
1 in
Inlet Connection Size
1 in
Outlet Connection Size - Side 1
1 in

Details

Body Material
Brass
Body Style
3-Way
Connection Type
FNPT x FNPT x FNPT
Ambient Temp. Range
-40 Degrees to 150 Degrees F
Body Seal Material
Viton
Ball Valve Product Group
Actuated
Item
Electronic Actuated Ball Valve
Seat Material
PTFE/Viton
Max. Steam Pressure
100 psi WSP
Port
Standard L
Max. Pressure
400 psi CWP
Valve Structure
2-Piece
Ball Valve Basic Body Material
Brass
Ball Material
Ni-Chrome Plated Brass
Stem Material
Nickel Plated Brass
Voltage
120VAC
Mount
Direct
Standards
NEMA 4, NEMA 4X, ISO5211
Stem Type
Blowout Proof
Temp. Range
-20 Degrees to 450 Degrees F
Seal Material
PTFE, FKM
Actuator Features
Manual Override, Position Indicator, Thermal Overload Protection
Outlet Connection Type - Side 1
NPT
Coefficient of Volume (Cv)
12.83
IP Rating
IP66
Maximum Pressure - Operating
400 psi
Outlet Connection Type - Side 2
NPT
For Media
Water
Actuator Operation
90 Degrees
Valve Ways
3-Way
Flow Pattern
L Flow
Ball Port Style
Standard Port
Operating Temperature - Minimum
-20 Degrees F
Actuator Cycle Time - 90 Degrees
6 sec
Inlet Connection Type
NPT
Valve Construction
Two-Piece
Included Mounting
ISO 5211 Actuator Mounting Pad
Maximum Operating Pressure Differential
300 psi
Actuator Series
DE
Maximum Pressure - Steam
100 psi
Outlet Connection Gender - Side 1
Female
Fail Safe Position
Fail Last
Maximum Pressure - Combustible Gas
Not Rated
Inlet Connection Gender
Female
Operating Temperature - Maximum
300 Degrees F
3-A Standard Compliance
Not Rated
Actuator Ambient Temperature - Minimum
-40 Degrees F
Actuator Ambient Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
4, 4X
Actuator Duty Cycle
50 %
Outlet Connection Gender - Side 2
Female
Valve Series
EYHG

Description

Electrically Actuated Three-Way Ball Valve, Valve Construction Two-Piece, Voltage 120V AC, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam 100 psi, Maximum Operating Pressure Differential 300 psi, Fail Safe Position Fail Last, Actuator Operation 90 Degrees , Actuator Cycle Time - 90 Degrees 6 sec, Actuator Features Manual Override, Position Indicator, Thermal Overload Protection, Ball Material Nickel-Chrome Plated Brass, Seal Material PTFE, FKM, Seat Material PTFE

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
