Shop DYNASONICS

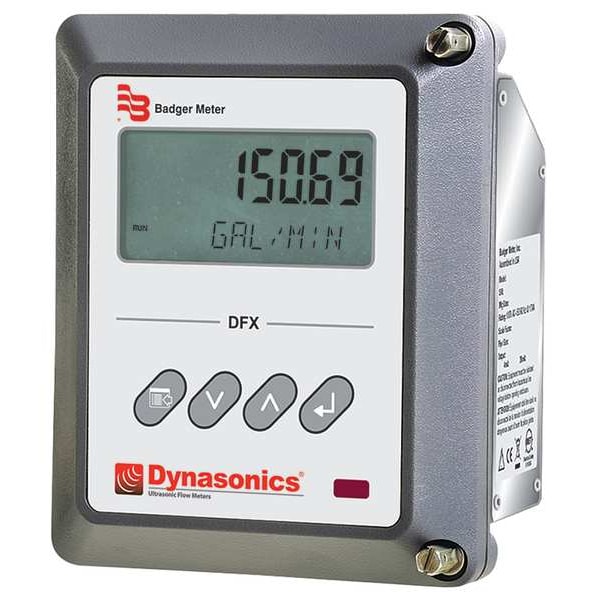

Dedicated Doppler Ultrasonic Meter

  • Mfr # DDFXD2-ANNA-NN
  • Zoro # G1580013
product price:
$
2,777.99
/ea
Free Shipping & Returns

Key Features

Standards
CSA C22.2 No 61010-1, UL 61010-1
Accuracy
2% Full Scale
Enclosure Material
Polycarbonate
Display
2 Line, 8 Character LCD
Features
Synchronization Provision
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DDFXD2-ANNA-NN
Zoro #
G1580013
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Meter Depth
4.25 in
Pipe Size - Maximum
1 in
Meter Height
7 in
Meter Width
5.75 in
Pipe Size - Minimum
0.25 in

Details

Item
Ultrasonic Meter
Standards
CSA C22.2 No 61010-1, UL 61010-1
Accuracy
2% Full Scale
Enclosure Material
Polycarbonate
Display
2 Line, 8 Character LCD
Features
Synchronization Provision
Flow Velocity Range (MPS)
0.05 to 9.00
Media Type
Liquids Containing a Minimum of 100 ppm of Useful Sonic Suspended Reflectors
Flow Velocity Range (FPS)
0.15 to 30.00
Type
Dedicated Doppler
Response Time
6-60 Seconds
Ambient Temp. Range
-40 Degrees to 185 Degrees F
Analog Output
Optional
Enclosure Rating
Nema 4X
Electrical Connections
Terminal
Power Source
115 V AC
Relay Output
Optional
Product Type
Ultrasonic Flow Meter
Flow Measured - Maximum
30 fps
Response Time - Minimum
6 sec
Input Voltage - Maximum
132 V AC
Flow Accuracy
+/-2% Full Scale
Operating Temperature - Maximum
194 Degrees F
Flow Measured - Minimum
0.15 fps
Response Time - Maximum
60 sec
Digital Display Screen Type
LCD
Operating Temperature - Minimum
-40 Degrees F
Input Voltage - Minimum
98 V AC

Description

Ultrasonic Meter, Dedicated Doppler, Flow Velocity Range (FPS) .15-30, Flow Velocity Range (MPS) .05-9, Media Type Liquids Containing a Minimum of 100 ppm of Useful Sonic Suspended Reflectors, 2 Line, 8 Character LCD Display, Response Time 6-60 Seconds, Ambient Temp. Range -40 to 185 F, Electrical Connections Terminal, Analog Output Optional, Relay Output Optional, Enclosure Material Polycarbonate, Enclosure Rating IP-66, Power Source 115 VAC, Features Synchronization Provision, CE Approved
