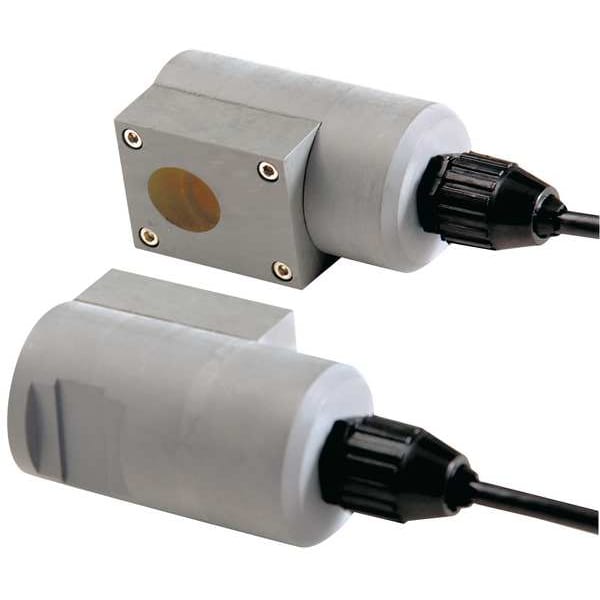

Transducer, Standard Temp Large Pipe
- Mfr # DT94-020-N000-N
- Zoro # G1030924
product price:Â
$
1,264.99
/ea
Free Shipping & Returns
Key Features
Standards
CSA C22.2 No 61010-1, UL 61010-1
Ambient Temp. Range
-40 Degrees to 194 Degrees F
Fluid Temp. Range (Deg. C)
100
Electrical Connections
Terminal Strip
Type
Standard Temp Large Pipe
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DT94-020-N000-N
- Zoro #
- G1030924
- UPC #
- -
- Country of Origin
- United States
- Item
- Transducer
- Standards
- CSA C22.2 No 61010-1, UL 61010-1
- Ambient Temp. Range
- -40 Degrees to 194 Degrees F
- Fluid Temp. Range (Deg. C)
- 100
- Electrical Connections
- Terminal Strip
- Type
- Standard Temp Large Pipe
- Enclosure Rating
- Nema 4X
- For Use With
- 5XPN0, 5XPN1
- Fluid Temp. Range (Deg. F)
- 210
- Mounting Method
- Clamp-On
- Material of Construction
- CPVC, Nylon, PVC, Ultem
- Product Type
- Ultrasonic Flow Meter
- Operating Temperature - Maximum
- 185 Degrees F
- Fluid Temperature - Minimum
- -40 Degrees F
- Fluid Temperature - Maximum
- 185 Degrees F
- Flow Accuracy
- +/-2% Full Scale
- Flow Measured - Minimum
- 0.15 fps
- Digital Display Screen Type
- LCD
- Response Time - Maximum
- 60 sec
- Flow Measured - Maximum
- 30 fps
- Operating Temperature - Minimum
- -40 Degrees F
- Response Time - Minimum
- 6 sec
Dimensions
- Manufacturers Warranty Length
- 1 yr
- Pipe Size (In.)
- 1 and above
- Pipe Size (mm)
- 25 and above
- Pipe Size - Minimum
- 1 in
- Pipe Size - Maximum
- 1 in
- Meter Width
- 4.38 in
- Meter Depth
- 1.7 in
Description
Transducer, Standard Temp Large Pipe, Material of Construction Ultem, CPVC, Nylon, PVC, Mounting Method Clamp-On, Electrical Connections Terminal Strip, For Use With 5XPN0, 5XPN1, Ambient Temp. Range -40 to 194 F, Enclosure Rating Nema 4X, Manufacturers Warranty Length 1 Year
