Shop DYNASONICS

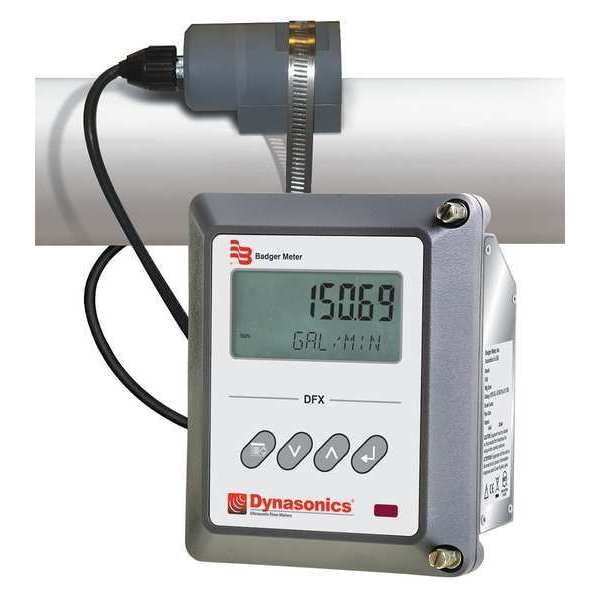

Doppler Flow AC & Std Pipe Transducer

  • Mfr # 7HU45

  • Zoro # G1400007

product price:  $4,063.99
/ea
Free Shipping & Returns

Key Features

Standards
CE
Accuracy
2% Full Scale
Analog Output
Optional
Ambient Temp. Range
-40 to 194 F
Media Type
Liquids Containing a Minimum of 100 ppm of Useful Sonic Suspended Reflectors
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7HU45
Zoro #
G1400007
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Pipe Size - Maximum
1 in
Pipe Size - Minimum
0.25 in

Details

Item
Ultrasonic Flow Detector
Standards
CE
Accuracy
2% Full Scale
Analog Output
Optional
Ambient Temp. Range
-40 to 194 F
Media Type
Liquids Containing a Minimum of 100 ppm of Useful Sonic Suspended Reflectors
Response Time
6 to 60 Seconds
Type
Dedicated Doppler
Electrical Connections
Terminal
Power Source
12-28 V DC
Includes
Transducer For Pipe Size 1 in and Above - 5XPN2
Flow Velocity Range (FPS)
0.15 to 30.00
Relay Output
Optional
Display
2 Line, 8 Character LCD
Enclosure Material
Polycarbonate
Flow Velocity Range (MPS)
0.05 to 9.00
Enclosure Rating
Nema 4X
Features
Synchronization Provision
Product Type
Ultrasonic Flow Meter
Response Time - Maximum
60 sec
Operating Temperature - Maximum
194 Degrees F
Flow Measured - Minimum
0.15 fps
Digital Display Screen Type
LCD
Input Voltage - Maximum
28 V DC
Operating Temperature - Minimum
-40 Degrees F
Flow Accuracy
+/-2% Full Scale
Flow Measured - Maximum
30 fps
Input Voltage - Minimum
12 V DC
Response Time - Minimum
6 sec

Description

Digital Doppler Ultrasonic Flow Transmitter DC & Standard Pipe Transducer, Dedicated Doppler, Flow Velocity Range (FPS) .15-30, Flow Velocity Range (MPS) .05-9, Accuracy 2 Percent Full Scale, Media Type Liquids Containing a Minimum of 100 ppm of Useful Sonic Suspended Reflectors, Display 2 Line, 8 Character LCD, Response Time 6 to 60 Seconds, Ambient Temp. Range -40 to 194 F, Electrical Connections Terminal, Analog Output Optional, Relay Output Optional, Enclosure Material Polycarbonate
