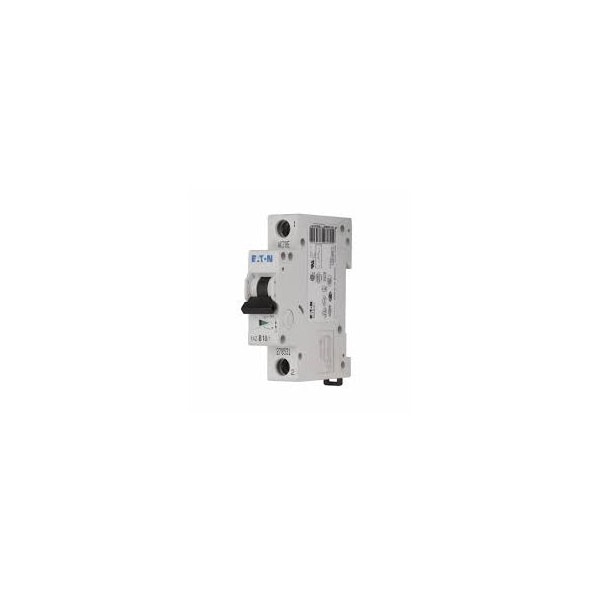

Eaton 1-Pole 0.5A C-Curve Miniature Circuit Breaker (DIN Rail) FAZ-C0.5/1-NA-SP - main

1-Pole 0.5A C-Curve Miniature Circuit Breaker (DIN Rail)

  • Mfr # FAZ-C0.5/1-NA-SP

  • Zoro # G322797760

product price:  $51.35
/ea

Key Features

AC Voltage Rating
277/480 VAC
Series
FAZ
Standards
UL 489, CSA C22.2
Circuit Breaker Type
Current Limiting
Terminal Connection
Screw
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FAZ-C0.5/1-NA-SP
Zoro #
G322797760
UPC #
1508163661
Country of Origin
Dominican Republic

Dimensions

Max. Wire Size
8 AWG
Frame Size
0.7 Inch Width x 2.36 Inch Depth x 4.13 Inch Height
Min. Wire Size
18 AWG

Details

AC Voltage Rating
277/480 VAC
Series
FAZ
Standards
UL 489, CSA C22.2
Circuit Breaker Type
Current Limiting
Terminal Connection
Screw
Number of Poles
1
Circuit Breaker Mounting Style
DIN Rail
Interrupt Rating
10 kA
Amps
32 A; 0.5 A
Trip Type
Thermal Magnetic

Description

277/480 VAC 50/60 Hz, 0.5 A, 1-Pole, 10/14 kA, 5 to 10 x Rated Current, Screw Terminal, DIN Rail Mount, Single Packaging, C-Curve, Current Limiting, Thermal Magnetic

Documents & Resources
