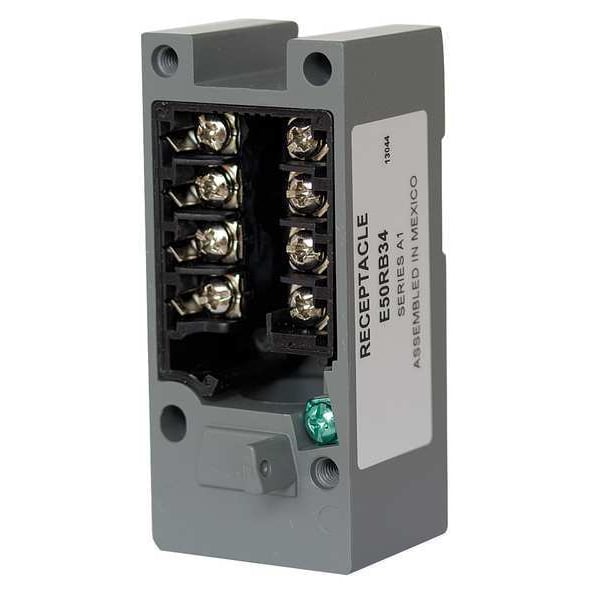

Eaton 1NC/1NO Limit Switch Receptacle E50RB34 - main

1NC/1NO Limit Switch Receptacle

  • Mfr # E50RB34

  • Zoro # G5232884

product price: $93.69
/ea
Free Shipping & Returns

Key Features

For Use With
Mfr. No. E50
Material of Construction
Zinc Die Cast
Contact Form
1NO/1NC
Conduit Size
3/4 in NPT
Body Material
Zinc Die Cast
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E50RB34
Zoro #
G5232884
UPC #
094726576925
Country of Origin
Mexico

Dimensions

Conduit Size
3/4 in NPT
Product Length/Depth
1.54 in
Product Height
2.92 in
Product Width
1.06 in
Mounting Hole Diameter
0.2 in
Overall Length
2.92 in
Overall Width
1.06 in
Overall Depth
1.54 in
Conduit Connection Size
3/4"
Manufacturer Warranty Length
1 yr

Details

Item
Limit Switch Receptacle
For Use With
Mfr. No. E50
Material of Construction
Zinc Die Cast
Contact Form
1NO/1NC
Body Material
Zinc Die Cast
Standards
CSA, UL Listed
IP Rating
67
Product Type
Limit Switch Receptacle
Material
Zinc
Electrical Connection
Screw Terminal
Enclosure material
Die cast zinc
Operating temperature - min
-40°F
Connection
Screw terminal
Environmental rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Operating temperature - max
250°F
Compliances
CE Marked
Certifications
UL Recognized
Compatible with Manufacturer Model Number
E50SB, E50SBL, E50SBN, E50SCL
Body Configuration
Plug-In
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Conduit Connection Type
NPT
Mounting Hole Vertical Center to Center Distance
60 mm
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Compatible with Series
E50
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
30 mm
Mounting Style
Diagonal Side
Compatible Manufacturer Part Number
E50SB, E50SBL, E50SBN, E50SCL
Compatible Manufacturer Model Number
E50SB, E50SBL, E50SBN, E50SCL
Compatible with Manufacturer Model No.
E50SB, E50SBL, E50SBN, E50SCL
Compatible with Mfr. Model No.
E50SB, E50SBL, E50SBN, E50SCL
For Use with Mfr Model Number
E50SB, E50SBL, E50SBN, E50SCL
For Use With Mfr. Model Number
E50SB, E50SBL, E50SBN, E50SCL
Compatible Pump Manufacturer Part Number
E50SB, E50SBL, E50SBN, E50SCL
Compatible Mfr. Model Number
E50SB, E50SBL, E50SBN, E50SCL

Description

Limit Switch Receptacle, Contact Form 1NO/1NC, Material of Construction Zinc Die Cast, Conduit Size 3/4 in NPT, For Use With Mfr. No. E50
