Shop EATON

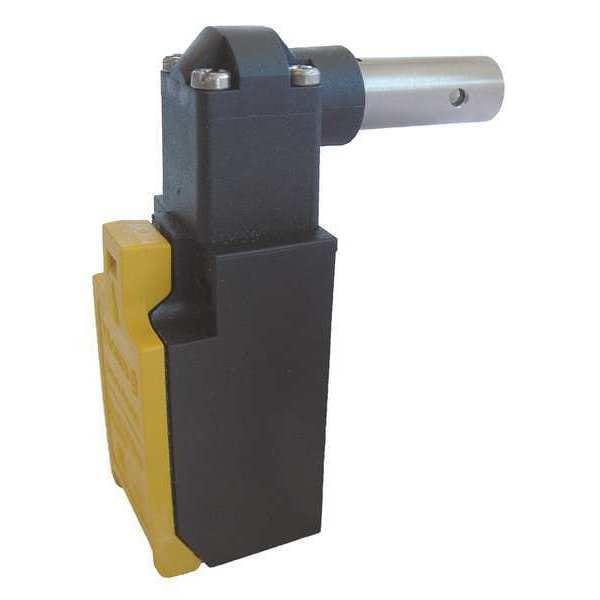

2NC Safety Interlock Switch Nema 1, 12, 13 IP 65

  • Mfr # LSR-S02-1-I-TS

  • Zoro # G2017690

product price:
$
341.99
/ea
Free Shipping & Returns

Key Features

Style
Metal Locking
Series
LS-Titan
Actuator Length
2.32 in
AC Contact Rating
6 A @ 230 V
DC Contact Rating
0.5 A @ 250 V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSR-S02-1-I-TS
Zoro #
G2017690
UPC #
786685393872
Country of Origin
Germany

Dimensions

Actuator Length
2.32 in
Height
3.15 in
Width
1.18 in
Depth
1.26 in
Conduit Size
M20 x 1/2 in
Product Length/Depth
1.18 in
Product Height
3.5 in
Product Width
2.24 in
Overall Height
3.5 in
Overall Width
2.24 in
Overall Depth
1.18 in
Manufacturer Warranty Length
1 yr

Details

Item
Safety Interlock Switch
Style
Metal Locking
Series
LS-Titan
AC Contact Rating
6 A @ 230 V
DC Contact Rating
0.5 A @ 250 V
Contact Form
2NC
Connection Type
Screw
IP Rating
IP66, IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Head Material
Metal
Positive Travel
5 Degrees to 90 Degrees
Over Travel
360 Degrees
Standards
RoHS, UL Listed
Movement
Rotation
Operating Force
1,500 N
Description/Special Features
Hinge Operated Switch
Body Material
Polyamide
NEMA Rating
1, 12, 13
Pre-travel
5 Degrees
Contact Material
Metal
Differential Travel
90 Degrees
Electrical Connection
Screw Terminals
Maximum AC current
6A
Environmental rating
IP66, IP67
Operating temperature - min
-13°F
Operating temperature - max
158°F
Contact Rating
6A at 230Vac, 0.5A at 250Vdc
Switch type
Cabinet door hinge switch
Connection
Screw terminal
Certifications
UL Listed
Type
LS-Titan
Contact configuration
2 NC, slow make break, positive opening
Maximum DC current
3A
Enclosure Material
Polyamide PA66-GF25
Product Name
Eaton LS-Titan Key interlock safety switches
Key Hole Location
Back, Front, Left, Right, Top
Resistance Properties
Shock Resistant
Actuating Key Type
Hinge
Overtravel
360 Degrees
Operating Temperature - Maximum
158 Degrees F
Includes Actuating Key
Actuating Key Included
NEMA Enclosure Rating
1, 12, 13
Operating Temperature - Minimum
-13 Degrees F
Circuitry Action
Snap Action
Pretravel
5 Degrees
Actuator Material
Metal

Description

Safety Interlock Switch, Metal Locking, Contact Form 2NC, Actuator Length 2.32 in, Connection Type Screw, AC Contact Rating 6 A @ 230 V, Series LS-Titan, DC Contact Rating 0.5 A @ 250 V, Height 3.15 in, Width 1.18 in, Depth 1.26 in, NEMA Rating 1, 12, 13, IP Rating IP66, IP67, Operating Temp. Range -13 Degrees to 158 Degrees F, Contact Material Metal, Conduit Size M20 x 1/2 in, Body Material Polyamide, Head Material Metal, Description/Special Features Hinge Operated Switch, Pre-travel 5 Degrees
