Shop HONEYWELL

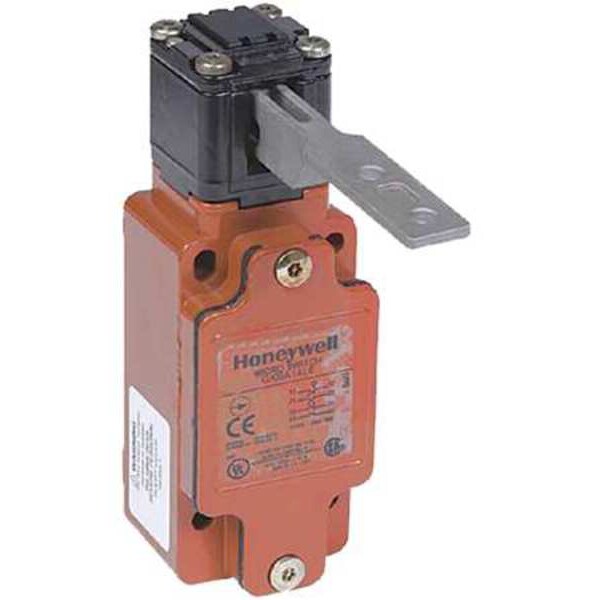

3NC/1NO Safety Interlock Switch Nema 1, 4, 12, 13

  • Mfr # GKBA16L6

  • Zoro # G4111283

product price:
$
602.99
/ea
Sold in multiples of 10 for $6,029.90
Free Shipping & Returns

Key Features

Style
Front and Top Opening, Straight Key
Series
GK
Actuator Length
3.03 in
AC Contact Rating
10 A
DC Contact Rating
0.001 to 10 A @ 250 V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
GKBA16L6
Zoro #
G4111283
UPC #
-
Country of Origin
United States
Item
Safety Interlock Switch
Style
Front and Top Opening, Straight Key
Series
GK
AC Contact Rating
10 A
DC Contact Rating
0.001 to 10 A @ 250 V
Contact Form
1NO, 3NC
Connection Type
1/2 in NPT Conduit
IP Rating
IP67
Operating Temp. Range
-13 Degrees to 185 Degrees F
Body Material
Zinc
Operating Force
8 lb
Head Material
Zinc Die-Cast
NEMA Rating
1, 12, 13, 4
Contact Material
Silver
Description/Special Features
6 lb Extraction Force, Mechanical Life up to 15 Million Operations
Standards
CE, CSA, UL Listed
Features
Dual Entry Head
Electrical Connection
10 Pin
Operating Temperature - Maximum
185 Degrees F
Circuitry Action
Slow Action
Actuating Key Type
Flat
Operating Temperature - Minimum
-13 Degrees F
Includes Actuating Key
No Actuating Key Included
Hazardous Location Specification
Not Rated
Actuator Material
Stainless Steel
Key Hole Location
Front, Top
NEMA Enclosure Rating
1, 12, 13, 4

Description

Safety Interlock Switch, Front and Top Opening, Straight Key, Contact Form 1NO, 3NC, Actuator Length 3.03 in, Connection Type 1/2 in NPT Conduit, AC Contact Rating 10 A, Series GK, DC Contact Rating 0.001 to 10 A @ 250 V, Solenoid Voltage Not Applicable, Height 4.79 in, Width 1.65 in, Depth 1.68 in, NEMA Rating 1, 12, 13, 4, IP Rating IP67, Operating Temp. Range -13 Degrees to 185 Degrees F, Contact Material Silver, Conduit Size 1/2 in NPT, Body Material Zinc, Head Material Zinc Die-Cast
