  8. Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 15A at 600V AC

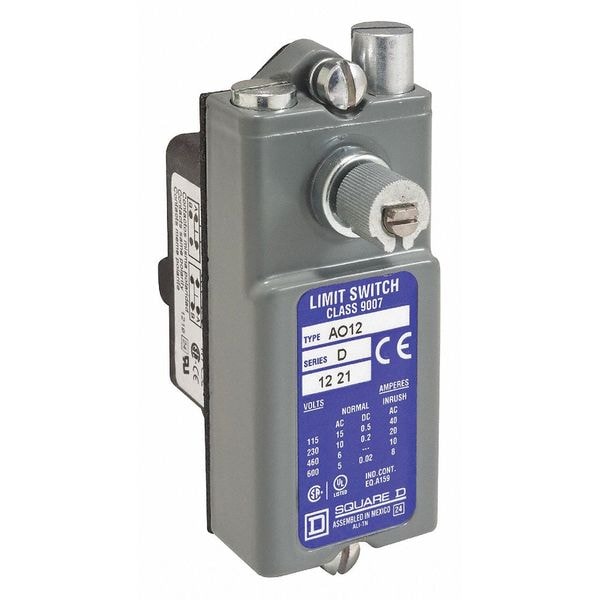

Telemecanique Sensors Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 15A at 600V AC 9007AO12 - main

Heavy Duty Limit Switch, No Lever, Rotary, 1NC/1NO, 15A at 600V AC

  • Mfr # 9007AO12

  • Zoro # G3486743

product price:  $234.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
AC Contact Rating - Limit Switch
15A @ 600V
Mounting - Limit Switch
open type
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007AO12
Zoro #
G3486743
UPC #
785901807520
Country of Origin
Mexico

Dimensions

Depth
1.40"
Height
3.91"
Width
2.40"
Body Depth - Limit Switch
1.38 in
Body Height - Limit Switch
3.47in
Manufacturer Warranty Length
18 mo
Overall Depth
1.38 in
Overall Height
3.47 in
Mounting Hole Diameter
0.2 in
Overall Width
2.28 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
1NC/1NO
AC Contact Rating - Limit Switch
15A @ 600V
Mounting - Limit Switch
open type
Actuator Location
Side
NEMA Rating
1, 2, 4, 12, 13
Operating Temp. Range
-65 Degrees to 185 Degrees F
Standards
CSA, UL Listed
Actuator Style
Rotary Head, No Lever
AC Contact Rating
10 A @ 240 V, 15 A @ 120 V, 5 A @ 600 V, 6 A @ 480 V
Wiring Entry
Open Style
Travel
Total Travel 90 Degrees
Electrical Connection
Screw Clamp Terminals
For Use With
Type 9007 C Compact Limit Switches
Operating Temp.
-20 Degrees to 185 Degrees F
DC Contact Rating
0.1 A @ 250 V, 0.25 A @ 125 V
Operating Force
2.75 in.-lb.
Series
9007AW
IP Rating
IP20
Contact Form
1NO/1NC
Movement
CW, CCW
Amps
15
Voltage Rating
600VAC/DC
Contact Material
silver contacts
Body Material
Zinc
Special Features
lateral approach, 1 direction programmable
Body Style (Limit Switch)
fixed
Actuation Type
from left convertible to right, CCW convertible to CW
Head Type
rotary head
Min. Actuation Velocity Horizontal
130 ft/min with 30 Degree cam angle, levers only, 90 ft/min with 45 Degree cam angle, levers only
Weight
0.1 lb(US)
Contact Action
snap action
Number of Mounting Holes
2
Operating Temperature - Minimum
0 Degrees F
Lamp Type
No Lamp Module Included
NEMA Enclosure Rating
1
Body Configuration
Non Plug-In
Mounting Hole Horizontal Center to Center Distance
27 mm
Operating Temperature - Maximum
185 Degrees F
Mounting Hole Vertical Center to Center Distance
89 mm
Number Of Poles
1
Type Of Operator
spring return without operating lever cast zinc

Description

Compact Limit Switch Body, Actuator Style - Limit Switch Rotary, No Lever, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 15A @ 600V, DC Contact Rating - Limit Switch 15A @ 600V, Contact Form- Switches 1NC/1NO, Body Height - Limit Switch 3.47 in, Body Width - Limit Switch 2.28 in, Body Depth - Limit Switch 1.38 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, Electrical Connection Screw Clamp Terminals, IP Rating IP20
