  11. AC to DC Power Supply, 320/600V AC, 24V DC, 120 W, 5 A, DIN Rail

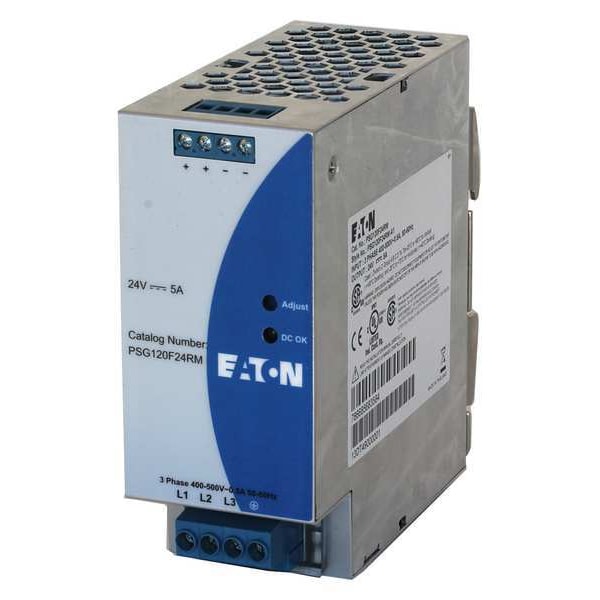

Eaton AC to DC Power Supply, 320/600V AC, 24V DC, 120 W, 5 A, DIN Rail PSG120F24RM - main

AC to DC Power Supply, 320/600V AC, 24V DC, 120 W, 5 A, DIN Rail

  • Mfr # PSG120F24RM

  • Zoro # G8569355

product price: $359.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
320/600V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSG120F24RM
Zoro #
G8569355
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Height
1.97 in
Overall Width
4.61 in
Overall Depth
4.76 in
Height
4.61 in
Depth
4.76 in
Width
1.97 in
Wire Size - Minimum
18 AWG
Wire Size - Maximum
12 AWG

Details

Item
AC to DC Power Supply
Input Voltage
320/600V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
120 W
Current - Output
5 A
Mounting
DIN Rail
Housing Material
Aluminum
Phase
Three
Power Supply Style
Switching
Output Voltage
24V DC
Power Rating
960W
Phase - Electrical
Three
Hold Up Time
Greater Than 22 msec
Status Indicator
LED/DC OK Signal
Operating Temp. Range
-20 to 80°C
Output Noise
Less Than 50mV
Case Material
Aluminum Case
Hz
50/60 Hz
Output Amps
5A
Features
Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint
Peak Amps
7.50
Standards
CE, CSA C22.2, EN, IEC, RoHS, UL 508
IP Rating
IP20
Style
Switching
Series
PSG
Compliances
CE Marked
Certifications
UL 508;EN Listed;IEC Rated;CSA Std. C22.2
Terminals
Finger-safe
Enclosure Color
Aluminum
Frequency Rating
47-63 Hz
Mean Time Between Failures (MTBF)
500,000 hr
Operating Temperature - Minimum
-13 Degrees F
Current - Inrush
60 A
Manufacturer Warranty
3 yr
Current - Peak
7.5 A
NEMA Enclosure Rating
1
Special Features
Finger Safe, Overvoltage Protection
Operating Temperature - Maximum
167 Degrees F

Description

DC Power Supply, Input Voltage 400 to 500V AC, Output Voltage 24V DC, Power Rating 120W, Output Amps 5, Mounting DIN Rail, Switching, Case Material Aluminum Case, Height 4.61 in, Width 1.97 in, Depth 4.76 in, Series PSG, Hz 50 to 60 Hz, Phase - Electrical Three, Peak Amps 7.50, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 22 msec, Status Indicator LED/DC OK Signal, NEMA Rating 1
