Shop EATON BUSSMANN

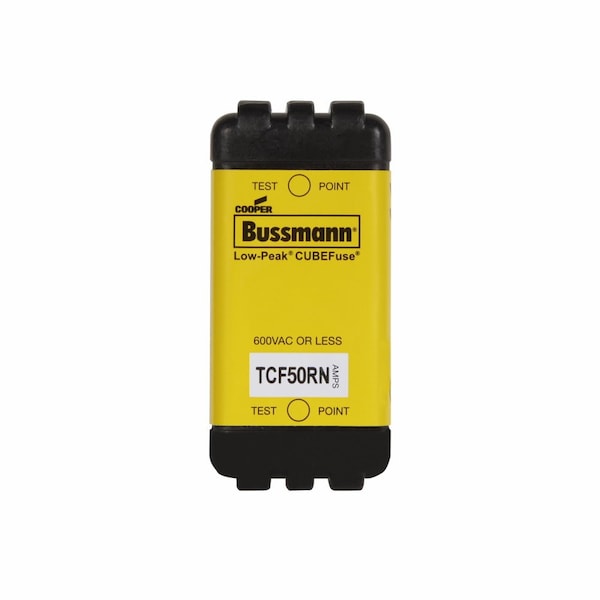

Fuse, 600VAC, Cube, CF, 50A, 300VDC, Non-Ind

  • Mfr # TCF50RN

  • Zoro # G901209899

product price:
$
123.99
/ea
Free Shipping & Returns

Key Features

Type
Time-delay fuse
Overall Length
2 1/8 in
Length
2 1/8 in
Standards
CE Marked, CSA Certified, RoHS Compliant, UL Listed
Width
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TCF50RN
Zoro #
G901209899
UPC #
051712221016
Country of Origin
China

Dimensions

Overall Length
2 1/8 in
Length
2 1/8 in
Width
1 in
Overall Width
1 in
Depth
1 29/32 in
Fuse Size
2.13 in L x 1 in W
Product Height
1.9 IN
Product Width
1 IN
Product Length/Depth
2.13 IN
Overall Depth
1 7/8 in
Wire Rope Length
2 1/8 in

Details

Item
Fuse
Type
Time-delay fuse
Standards
CE Marked, CSA Certified, RoHS Compliant, UL Listed
Application
Electrical panelboards, industrial control, machinery disconnects, required finger safe systems
Color
Black body
Body Material
Glass Filled PES
DC Voltage Rating
300 V DC
Body Style
Cube
Interrupt Rating
100k A at 300V DC, 300k A at 600V AC
Visual Indication
Non-Indicating
Equivalent Series
FCF
Amps
50 A
Element
Dual
Compatible Fuse Block Series
CCP2-X-XCF, TCFH
AC Voltage Rating
600 V AC
Speed
Time-Delay
Class
CF
Equivalent Brand and Series
Bussmann Series Class FCF
Fuse type
Time-Delay, class CF
Certifications
UL Listed
Connection
Blade End
Mounting
35 mm Din Rail, chassis
Frequency Rating Minimum
50 HZ
Frequency Rating Maximum
60 HZ
Special features
Finger safe
Voltage rating
600 Vac, 300 Vdc
Material Type
Glass filled PES
Voltage Rating Numeric
600 V
Amperage Rating Numeric
50 A
Response time
10 s at 500%
Amperage Rating
50A
Used with
TCFH60N, CCP2-3-60CF
Fuse indicator
Non Indicating
Number of elements
Dual
Interrupt Rating - AC
300 kA
Interrupt Rating - DC
100 kA
Current
50 A
Fits Fuse Block Style
Non-Rejection
Series
TCF

Description

Fuse, 50 A, 600 V AC, 300 V DC, Class CF, TCF Series, Non-Indicating, Time-Delay, Body Style Cube, Fits Fuse Block Style Non-Rejection, Interrupt Rating 100k A at 300V DC, 300k A at 600V AC, Fuse Size 2 1/8 in L x 1 in W x 1 29/32 in D, Length 2 1/8 in, Equivalent Brand and Series Bussmann Series Class FCF, Equivalent Series FCF, Compatible Fuse Block Series CCP2-X-XCF, TCFH, Body Material Glass Filled PES, Dual Element, Standards CE Marked, CSA Certified, RoHS Compliant, UL Listed
