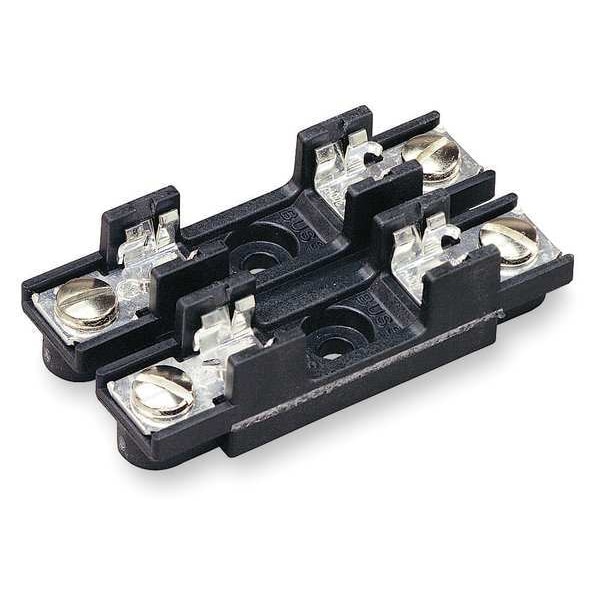

Open Fuse Block, 0 to 30A Amp Range, 300V AC/DC Volt Rating, 2 Poles, Screw
Mfr # S-8301-2-R
Zoro # G1405826
product price:Â
$
14.75
/ea
Key Features
Series
S-8000
Number of Poles
2
Amp Range
0 to 30A
Voltage Rating
300V AC/DC
Connector Type
Screw
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- S-8301-2-R
- Zoro #
- G1405826
- UPC #
- 051712549011
- Country of Origin
- United States
Dimensions
- Height
- 0.56 in
- Length
- 2.19 in
- Width
- 1-1/8 in
- For Fuse Size
- 1-1/4 in L x 1/4 in dia
- Wire Size - Minimum
- 22 AWG
- Overall Length
- 2.19 in
- For Fuse Length
- 1 1/4 in
- Wire Size - Maximum
- 10 AWG
- For Fuse Diameter
- 1/4 in
- Overall Width
- 1.13 in
- Overall Height
- 0.56 in
- Wire Rope Length
- 2.19 in
Description
Fuse Block, Fits Fuse Type Glass and Ceramic, Fuse UL Class Not Class Rated, 0 to 30 A, Number of Poles 2, 300V AC/DC, For Fuse Size 1 1/4 in L x 1/4 in dia, Compatible Fuse Series 311, 312, 313, 314, 315, 322, 326, 3AG, ABC, ACG, GAB, GBB, GDL, GDV, GGC, GSA, MDA, MDL, MDQ, MDV, MDX, MMB, Series S-8000, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 22 to 10 AWG, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Screw, Height 0.56 in, Width 1.13 in
