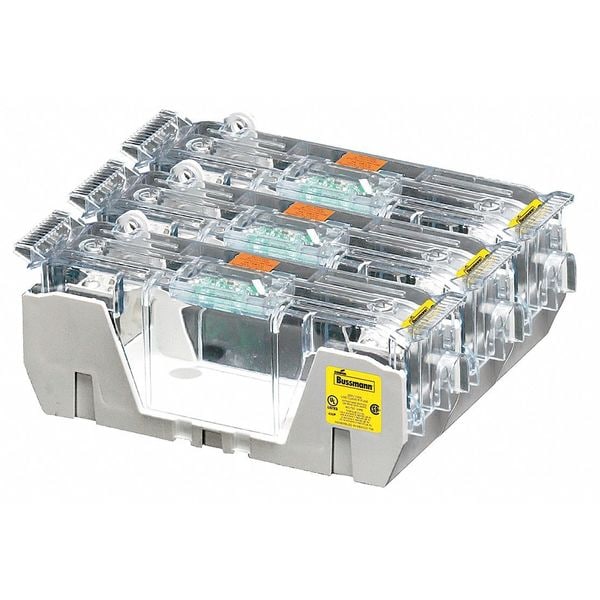

Open Fuse Block, H; K5 UL Class, 250V AC/DC Volt Rating, 3 Poles, Box Lug
Mfr # HM25100-3CR
Zoro # G2590701
product price: $143.99
/ea
Sold in multiples of 2 for $287.98
Free Shipping & Returns
Key Features
UL Class
H; K5
Series
HM
Number of Poles
3
Amp Range
70 to 100A
Connector Type
Box Lug
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HM25100-3CR
Zoro #
G2590701
UPC #
051712391146
Country of Origin
Mexico
Dimensions
Length
9.20 in
Width
6 in
Height
2.80 in
For Fuse Size
5-7/8 in L x 1-1/16 in dia
Wire Size - Maximum
1 AWG
Wire Size - Minimum
14 AWG
Overall Width
6 in
Overall Height
2.8 in
Overall Length
9.2 in
For Fuse Length
5 7/8 in
For Fuse Diameter
1 1/16 in
Wire Size
14 to 1 AWG
Description
Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 61 to 100 A, Number of Poles 3, 250V AC/125V DC, For Fuse Size 5 7/8 in L x 1 1/16 in dia, Compatible Fuse Series NLN; NON; OT; REN; RF; RLN, Series HM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 1 AWG, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Box Lug, Height 2.8 in, Width 6 in, Length 9.2 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
